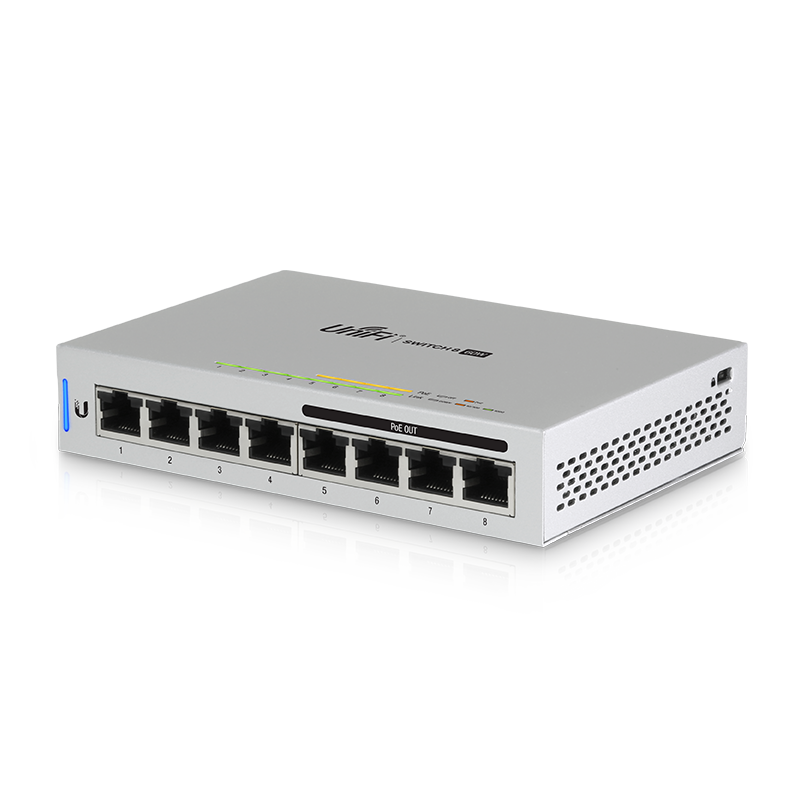

Ubiquiti US-8-60W is an Ethernet switch. Switching capacity is 16 Gbps. PoE budget: 48W. Installation: Compact desktop, wall.
Tell us the configuration, quantity and destination. Your quotation will show availability, condition, warranty and delivery terms.
Start an order requestUbiquiti / PRODUCT DETAILS
Start with the exact switch part number, then list every connection. Optics, uplink modules and software may be separate items.
List connected devices, link rates and their PoE requirements.
View all specifications →Ubiquiti / ORDER & INSTALLATION DETAILS
Keep UniFi, UISP and other product-family identities distinct.
Confirm the controller or management arrangement for the exact device.
Check power input, antenna, mounting and regional radio requirements.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Manufacturer | Ubiquiti |
|---|---|
| Manufacturer part number | US-8-60W |
| Dimensions | 148 x 100 x 31 mm (5.8 x 3.9 x 1.2") |
| Max. PoE Output | Up to PoE |
| Total PoE Availability | 48W |
| Form Factor | Compact desktop, wall |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Max. Power Consumption | 12W (Excluding PoE output) |
| Power Method | (1) AC/DC adapter (Included) |
| Power Input Method | AC input |
| Supported Voltage Range | 44–57V DC/PoE |
| Management | Ethernet |
| Weight | 432 g (15.2 oz) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
HOW THIS PRODUCT FITS YOUR NETWORK
Choose how you plan to use this product.
List connected devices, link rates and their PoE requirements.
US-8-60W: check access ports, uplinks and link rates.
This sketch helps describe your request. We will confirm protocols, port counts, coverage and failover when quoting.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Include the full Ubiquiti model or part number, required revision and host configuration. List software and service requirements separately.
No license options are listed for this part number. If you need software, add its manufacturer part number and we will check it with the hardware.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full US-8-60W order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
Ubiquiti US-8-60W is an Ethernet switch. Switching capacity is 16 Gbps. PoE budget: 48W. Installation: Compact desktop, wall.
Count the copper and fiber connections you need, then allow room for uplinks. Combo ports share a connection; PoE devices also need enough power across the whole switch. Ask us to confirm power supplies, optics and mounting hardware in the quotation.
