TP-Link / Enterprise Router

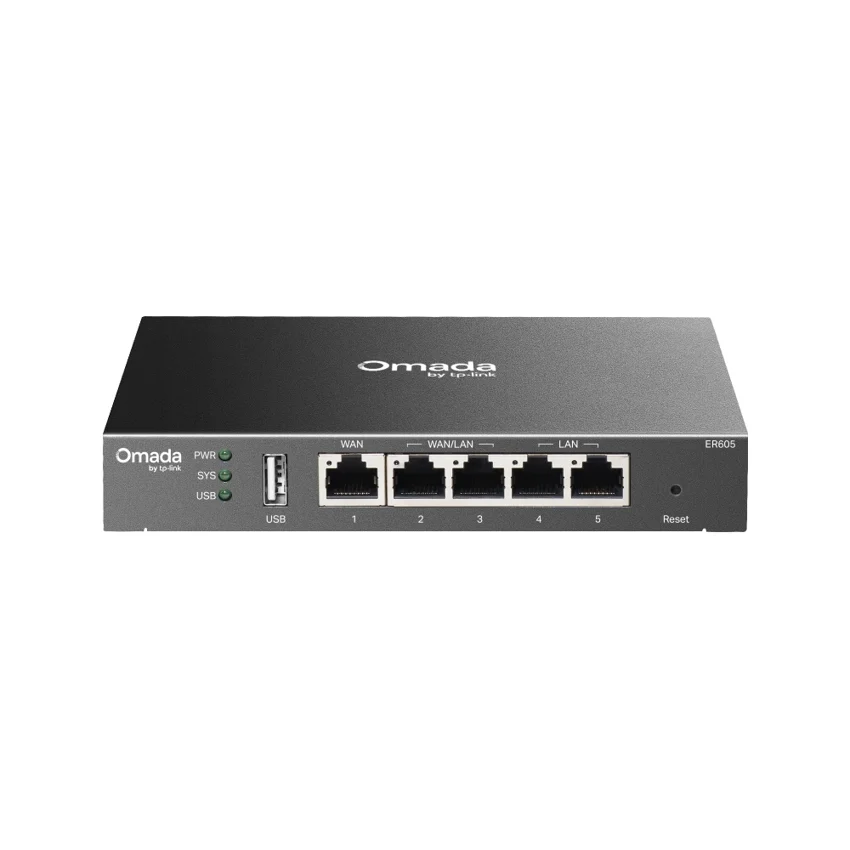

TP-Link ER605

Manufacturer P/N: ER605

TP-Link ER605 enterprise router. Access Control: • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN; DPI: Deep Packet Inspection Support 2421 type Applications; DNS Proxy: DNSSEC, DoH, DoT, DNS Override. Compare configuration and request a hardware quote.

Documented hardware version: V2.30; match the hardware revision before ordering
Access Control: • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DPI: Deep Packet Inspection Support 2421 type Applications
DNS Proxy: DNSSEC, DoH, DoT, DNS Override

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

ER605Enterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

ER605 specifications
Manufacturer	TP-Link
Manufacturer part number	ER605
Product family	Business enterprise routers
Documented hardware version	V2.30; match the hardware revision before ordering
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DPI	Deep Packet Inspection Support 2421 type Applications
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
GRE	√ (Only in Standalone Mode)
WireGuard VPN	√
SD-WAN	√ (Only in Controller Mode)
Interface	• 1 Gigabit WAN port • 2 Gigabit WAN/LAN ports • 2 Gigabit LAN ports • 1 USB2.0(supports USB LTE dongle ‡ )
Button	Reset Button
Power Supply	External 12V/1A DC Adapter
Flash	128 MB NAND
DRAM	256 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Mounting	Desktop/Wall-mount
Max. Power Consumption	7.94 W
Concurrent Session	150,000
New Sessions /Second	1,800
NAT (Static IP)	• Upload: 941.64 Mbps • Download: 944.35 Mbps • Bi-Directional: 1775.32 Mbps
NAT(DHCP)	• Upload: 941.23 Mbps • Download: 943.85 Mbps • Bi-Directional: 1782.27 Mbps
NAT(PPPoE)	• Upload: 938.83 Mbps • Download: 940.27 Mbps • Bi-Directional: 1781.77 Mbps
NAT (L2TP)	• Upload: 637.66 Mbps • Download: 502.34 Mbps • Bi-Directional: 657.92 Mbps
NAT (PPTP)	• Upload: 655.36 Mbps • Download: 511.95 Mbps • Bi-Directional: 665.43 Mbps
66 Byte Packet Forwarding Rate	Upload: 1,388,815 pps Download: 1,388,806 pps
1,518 Byte Packet forwarding rate	Upload: 81,067 pps Download: 81,069 pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 239.39 Mbps • ESP-SHA256-AES256: 250.94 Mbps • ESP-SHA384-AES256: 31.44 Mbps • ESP-SHA512-AES256: 53.57 Mbps
GRE	Unencrypted: 460.97 Mbps Encrypted: 161.83 Mbps
OpenVPN	15.90 Mbps
L2TP VPN Throughput	• Unencrypted: 558.60 Mbps • Encrypted: 143.60 Mbps
PPTP VPN Throughput	• Unencrypted: 616.33 Mbps • Encrypted: 49.83 Mbps
WireGuard VPN Throughput	82.62 Mbps
DPI Throughput	TCP: 944 Mbps; UDP: 940 Mbps
Omada App	Yes. Requiring the use of Omada Controllers.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Controllers.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
LAN DNS	√
WAN Connection Type	• Static • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
Session Limit	IP-based Session Limit
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, LLDP
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

PRODUCT DETAILS

Features and applications

ER605 at a glance

TP-Link ER605 is an enterprise router in the Business enterprise routers range. Use the model code when matching your deployment or replacement requirement.

Access Control: • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DPI: Deep Packet Inspection Support 2421 type Applications
DNS Proxy: DNSSEC, DoH, DoT, DNS Override

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
