Model and quantity
Include the full model, manufacturer P/N, revision and quantity.

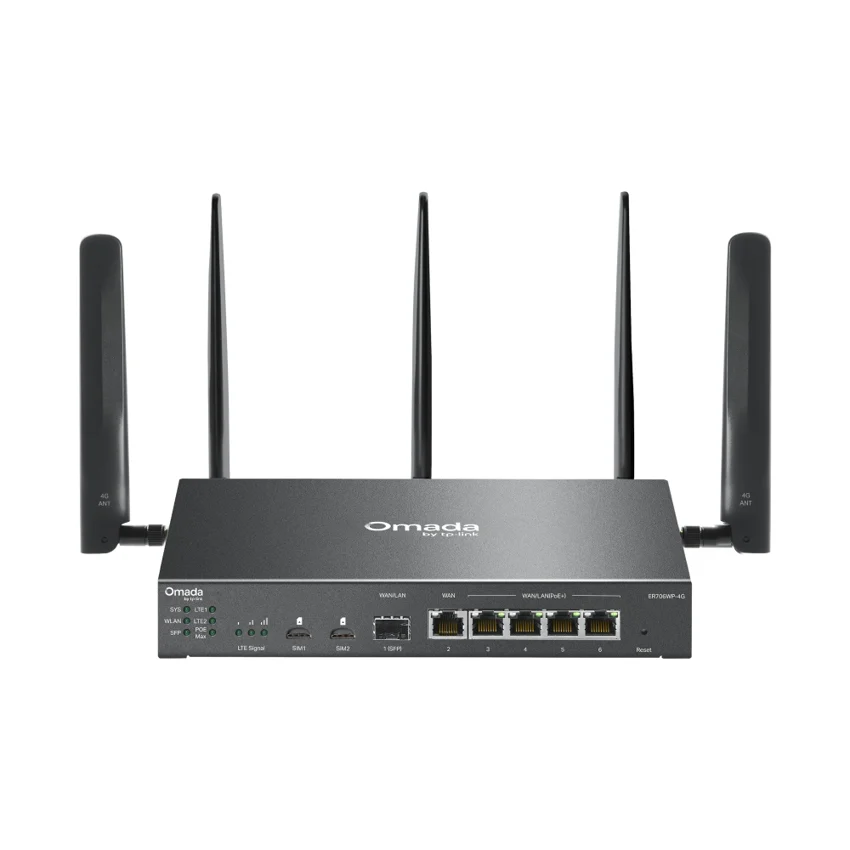

TP-Link / Enterprise Router
TP-Link ER706WP-4G
Manufacturer P/N: ER706WP-4G
TP-Link ER706WP-4G enterprise router. SIM Type: 2× Nano SIM slots (4G+ Cat6); Cellular data rates: • Downlink: 300 Mbps • Uplink: 50 Mbps; DPI: Deep Packet Inspection Support 2421 type Applications. Compare configuration and request a hardware quote.
- Documented hardware version
- V1.20; match the hardware revision before ordering
- SIM Type
- 2× Nano SIM slots (4G+ Cat6)
- Cellular data rates
- • Downlink: 300 Mbps • Uplink: 50 Mbps
- DPI
- Deep Packet Inspection Support 2421 type Applications
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
ER706WP-4GEnterprise Router
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | ER706WP-4G |
| Product family | Business enterprise routers |
| Documented hardware version | V1.20; match the hardware revision before ordering |
| SIM Type | 2× Nano SIM slots (4G+ Cat6) |
| Cellular data rates | • Downlink: 300 Mbps • Uplink: 50 Mbps |
| DPI | Deep Packet Inspection Support 2421 type Applications |
| Access Control | • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Interface | • 1× Gigabit SFP WAN/LAN Port • 1× Gigabit WAN Port • 4× Gigabit WAN/LAN Ports |
| Button | Reset Button |
| Power Supply | 53.5VDC / 1.31A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE) |
| PoE Ports (RJ45) | 4× ports PoE+ output, 45 W PoE Budget |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: 3× 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop/Wall-Mounting/Rackmount (rackmount kit not provided) |
| Max. Power Consumption | • EU: 64W with PoE Max; 18W without PoE • US: 65W with PoE Max; 19W without PoE |
| Concurrent Session | 150,000 |
| New Sessions /Second | 4,500 |
| NAT (Static IP) | • Upload: 947.1Mbps • Download: 940.1Mbps |
| NAT(DHCP) | • Upload: 949.2Mbps • Download:941.1Mbps |
| NAT(PPPoE) | • Upload: 942.6Mbps • Download:941.1Mbps |
| NAT (L2TP) | • Upload: 875.4Mbps • Download: 892.0Mbps |
| NAT (PPTP) | • Upload: 881.2 Mbps • Download: 895.8 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps • ESP-SHA256-AES256: 654.4Mbps • ESP-SHA384-AES256: 646.5Mbps • ESP-SHA512-AES256: 670.5 Mbps |
| GRE | • Unencrypted: 951 Mbps • Encrypted: 615 Mbps |
| WireGuard VPN | 335.1 Mbps |
| OpenVPN | 101.8 Mbps |
| L2TP VPN Throughput | • Unencrypted: 990.0 Mbps • Encrypted: 502.5 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1057.5 Mbps • Encrypted: 177.4 Mbps |
| DPI Throughput | • TCP: 933 Mbps • UDP: 927 Mbps |
| SSL VPN Throughput | 114.6 Mbps |
| LAN DNS | √ |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| SMS | Receive / Send SMS |
| mDNS Repeater | √ |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| Session Limit | IP-Based Session Limit |
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) △ • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) △ • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5) △ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | √ |
| Omada App | Yes. |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Zero-Touch Provisioning | Yes. Require the use of an Omada Controller. |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Network Type | LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/ 900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: • B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 • B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 • B5+B5/B7/B38/B40/B41 • B7+B7/B8/B20/B28/B32 • B8+B32/B38/B40/B41 • B20+B32/B38/B40 • B28+B32/B38/B40/B41 • B38+B38 • B40+B40 • B41+B41 |
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, 802.11a/b/g/n/ac/ax, LLDP |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Advanced Features | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) • Load Balance • Airtime Fairness • Band Steering • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60 |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
PRODUCT DETAILS
Features and applications
ER706WP-4G at a glance
TP-Link ER706WP-4G is an enterprise router in the Business enterprise routers range. Use the model code when matching your deployment or replacement requirement.
- SIM Type: 2× Nano SIM slots (4G+ Cat6)
- Cellular data rates: • Downlink: 300 Mbps • Uplink: 50 Mbps
- DPI: Deep Packet Inspection Support 2421 type Applications
Configuration and installation
Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
Related Business enterprise routers models
Ordering questions
What should I include in an enquiry?
Send ER706WP-4G with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.
Are accessories and support included?
Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
