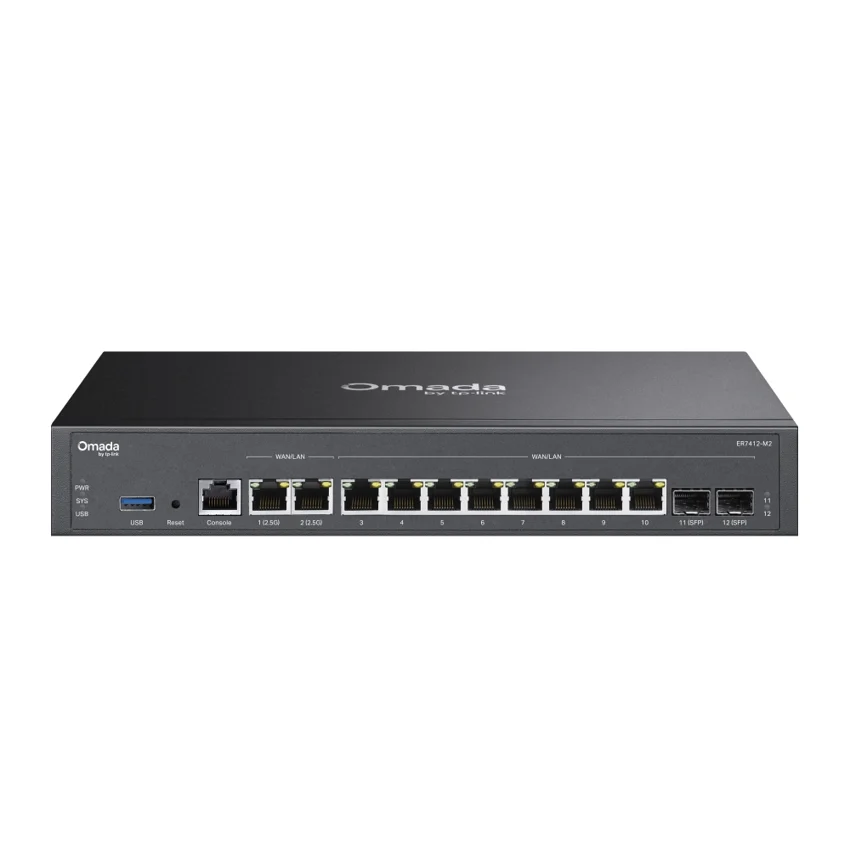

TP-Link ER7412-M2

Manufacturer P/N: ER7412-M2

TP-Link ER7412-M2 enterprise router. IDS/IPS: Intrusion Detection/Prevention; Access Control: • Source/Destination IP-Based ACL• Stateful ACL• IPv4/IPv6 ACL• Location Based ACL• FQDN; DPI: Deep Packet Inspection Support 2421 type Applications. Compare configuration and request a hardware quote.

Documented hardware version: V1.30; match the hardware revision before ordering
IDS/IPS: Intrusion Detection/Prevention
Access Control: • Source/Destination IP-Based ACL• Stateful ACL• IPv4/IPv6 ACL• Location Based ACL• FQDN
DPI: Deep Packet Inspection Support 2421 type Applications

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

ER7412-M2Enterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

ER7412-M2 specifications
Manufacturer	TP-Link
Manufacturer part number	ER7412-M2
Product family	Business enterprise routers
Documented hardware version	V1.30; match the hardware revision before ordering
IDS/IPS	Intrusion Detection/Prevention
Access Control	• Source/Destination IP-Based ACL• Stateful ACL• IPv4/IPv6 ACL• Location Based ACL• FQDN
DPI	Deep Packet Inspection Support 2421 type Applications
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
GRE	√ (Only in Standalone Mode)
SSL VPN	80 Tunnels
WireGuard VPN	√
SD-WAN	√ (Only in Controller Mode)
CPU	Quad-core ARMv8
Button	Reset Button
Power Supply	100–240 VAC, 50/60 Hz
Flash	128 MB NAND
DRAM	1 GB DDR4
Weight	1.168 kg
Dimensions ( W x D x H )	11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Protection	4 kV surge protection
Mounting	• Desktop • Rack Mount
Max. Power Consumption	18.5 W (With USB 3.0 connected)
Concurrent Session	1,000,000
New Sessions /Second	7,000
NAT (Static IP)	2345.71 Mbps / 2351.22 Mbps
NAT(DHCP)	2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE)	2336.52 Mbps / 2336.08 Mbps
NAT (L2TP)	1937.53 Mbps / 1761.82 Mbps
NAT (PPTP)	1757.54 Mbps / 2011.33 Mbps
66 Byte Packet Forwarding Rate	Upload: 3,471,591 pps Download: 3,475,379 pps
1,518 Byte Packet forwarding rate	Upload: 202,652 pps Download: 202,652 pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps
GRE	• Unencrypted: 2274 Mbps • Encrypted: 1192 Mbps
WireGuard VPN	771.6 Mbps
OpenVPN	UDP: 266.2 Mbps
L2TP VPN Throughput	• Unencrypted: 2724.5 Mbps • Encrypted: 1018.4 Mbps
PPTP VPN Throughput	• Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps
SSL VPN Throughput	263.1 Mbps
WireGuard VPN Throughput	771.6 Mbps
DPI Throughput	2.2 Gbps
IPS Throughput	TCP: 2248 Mbps UDP: 2140 Mbps
Omada App	Yes. Requiring the use of an Omada Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of an Omada Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal
LAN DNS	√
WAN Connection Type	• Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Bandwidth Control	IP/Port-based Bandwidth Control
Session Limit	IP-based Session Limit
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User/Voucher △ /SMS △ /Radius △ ) • External Radius Server • External Portal Server △ • LDAP
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
IPsec VPN	• 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP
Interface	• 2× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 1× USB 3.0 Port (USB LTE dongle and USB Storage) #
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing

PRODUCT DETAILS

Features and applications

ER7412-M2 at a glance

TP-Link ER7412-M2 is an enterprise router in the Business enterprise routers range. Use the model code when matching your deployment or replacement requirement.

IDS/IPS: Intrusion Detection/Prevention
Access Control: • Source/Destination IP-Based ACL• Stateful ACL• IPv4/IPv6 ACL• Location Based ACL• FQDN
DPI: Deep Packet Inspection Support 2421 type Applications

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
