TP-Link / Enterprise Router

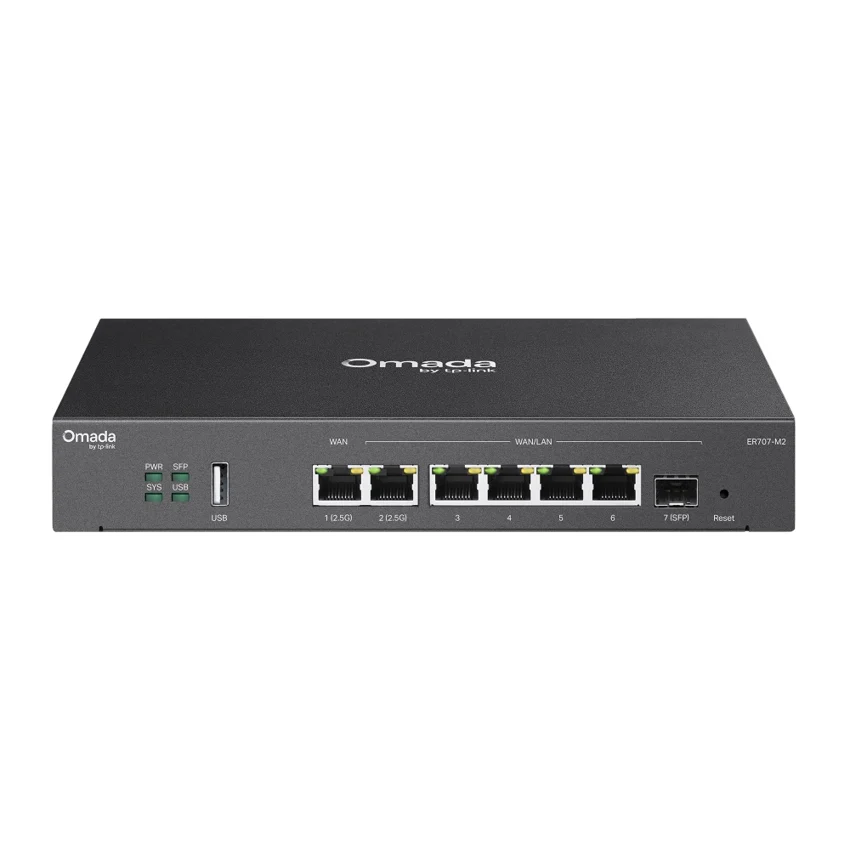

TP-Link ER707-M2

Manufacturer P/N: ER707-M2

TP-Link ER707-M2 enterprise router. IDS/IPS: Signature-based IPS/IDS threat detection; Access Control: • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL• FQDN; DPI: Deep Packet InspectionSupport 2421 type Applications. Compare configuration and request a hardware quote.

Documented hardware version: V1.30; match the hardware revision before ordering
IDS/IPS: Signature-based IPS/IDS threat detection
Access Control: • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL• FQDN
DPI: Deep Packet InspectionSupport 2421 type Applications

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

CONNECTIONS & COMPATIBILITY

Network connections and supported equipment

Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.

CONNECTS TOClients, servers or access links

ER707-M2Enterprise Router

USED FORConnected network equipment

Connection and installation requirements

Port type, line rate, optics, reach and software license
Peer platform support, resiliency and management design

Storage connection examples ↗Servers & appliances ↗

Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

ER707-M2 specifications
Manufacturer	TP-Link
Manufacturer part number	ER707-M2
Product family	Business enterprise routers
Documented hardware version	V1.30; match the hardware revision before ordering
IDS/IPS	Signature-based IPS/IDS threat detection
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL• FQDN
DPI	Deep Packet InspectionSupport 2421 type Applications
DNS Proxy	DNSSEC, DoH, DoT, DNS Override, and DNS Cache
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
GRE	√ (Only in Standalone Mode)
SSL VPN	SSL VPN Server 60 SSL VPN Tunnels
WireGuard VPN	√
SD-WAN	√
CPU	Dual-core ARMv8
Fan Quantity	Fanless
Button	Reset Button
Power Supply	12V/1.5A Adapter
Flash	128 MB NAND
DRAM	1 GB DDR4
LED	PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Weight	0.886 kg
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop/Wall Mount/Rackmount
Max. Power Consumption	14.2 W (with USB 2.0 connected) 7.1 W (without USB 2.0 connected)
Concurrent Session	500,000
New Sessions /Second	6,000
NAT (Static IP)	2365.17 Mbps / 2364.45 Mbps
NAT(DHCP)	2364.45 Mbps / 2366.04 Mbps
NAT(PPPoE)	2347.14 Mbps / 2348.29 Mbps
NAT (L2TP)	1308.86 Mbps / 974.10 Mbps
NAT (PPTP)	1236.27 Mbps / 1280.99 Mbps
66 Byte Packet Forwarding Rate	Upload: 3,471,004 pps Download: 3,298,939 pps
1,518 Byte Packet forwarding rate	Upload: 202,666 pps Download: 202,348 pps
IPsec VPN Throughput	• ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps
GRE	Unencrypted: 951 Mbps Encrypted: 609 Mbps
OpenVPN	135.0 Mbps
L2TP VPN Throughput	• Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps
SSL VPN Throughput	132.24 Mbps
WireGuard VPN Throughput	343 Mbps
DPI Throughput	TCP: 1823 Mbps UDP: 1272 Mbps
IPS Throughput	TCP: 1552 Mbps UDP: 1206 Mbps
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller.
LAN DNS	√
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Bandwidth Control	• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Session Limit	IP-based Session Limit
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User/Voucher △ /SMS △ /Radius △ ) • External Radius Server • External Portal Server △ • LDAP
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
Interface	• 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports LTE backup with LTE dongle # , and USB Storage)
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
WAN Connection Type	• IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6to4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing

PRODUCT DETAILS

Features and applications

ER707-M2 at a glance

TP-Link ER707-M2 is an enterprise router in the Business enterprise routers range. Use the model code when matching your deployment or replacement requirement.

IDS/IPS: Signature-based IPS/IDS threat detection
Access Control: • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL• FQDN
DPI: Deep Packet InspectionSupport 2421 type Applications

Configuration and installation

Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
