TP-Link / Enterprise Router

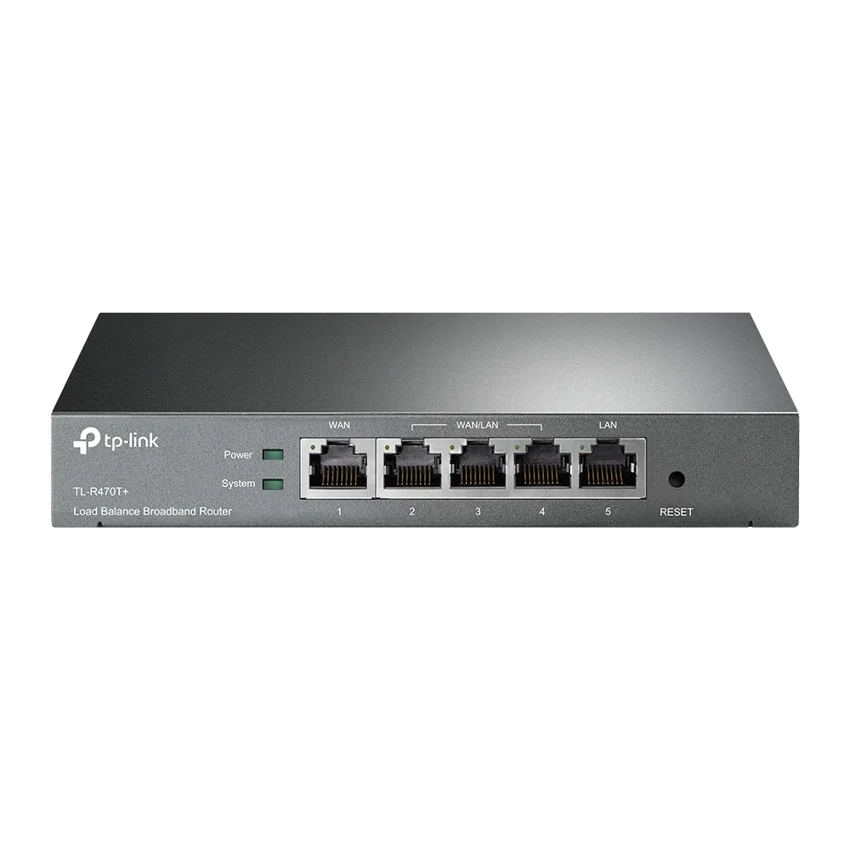

TP-Link TL-R470T+
Manufacturer P/N: TL-R470T+
TP-Link TL-R470T+ enterprise router. Interface: 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports; Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m); Button: Reset Button. Compare configuration and request a
- Documented hardware version
- V6; match the hardware revision before ordering
- Standards and Protocols
- IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
- Interface
- 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m)
Price on request
Contact us to confirm availability. Final price, shipping and taxes are confirmed before payment.
Pricing, availability, condition, included options and warranty are confirmed in your quotation.
Help choosing compatible hardwareWorldwide delivery
CONNECTIONS & COMPATIBILITY
Network connections and supported equipment
Check the protocol and port requirements of the equipment you intend to connect. Ethernet, Fibre Channel, InfiniBand and carrier interfaces are not interchangeable.
CONNECTS TOClients, servers or access links
TL-R470T+Enterprise Router
USED FORConnected network equipment
Connection and installation requirements
- Port type, line rate, optics, reach and software license
- Peer platform support, resiliency and management design
Browse the product categories above for related equipment. Confirm compatibility with your full configuration before ordering.
Technical overview
Technical specifications
Use the complete part number when reviewing options and system requirements.
| Manufacturer | TP-Link |
|---|---|
| Manufacturer part number | TL-R470T+ |
| Product family | Business enterprise routers |
| Documented hardware version | V6; match the hardware revision before ordering |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
| Interface | 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
| Button | Reset Button |
| Power Supply | External 9V/0.6A DC Adapter |
| Flash | 16MB |
| DRAM | 128MB |
| LED | PWR, SYS, WAN, LAN, WAN/LAN |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
| Concurrent Session | 10000 |
| Service | Dynamic DNS, UPnP |
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server/Client, DHCP Address Reservation |
| Switch Setting | Rate Control, Port Configuration, Port VLAN |
| Access Control | IP/MAC/URL/WEB Filtering |
| IGMP | IGMP Proxy/IGMP Snooping |
| Forwarding | Virtual Server, Port Triggering, DMZ |
| Load Balance | Policy Routing, Link Backup |
| Routing | Static Routing |
| Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
| Traffic Control | Bandwidth Control, Session Limit |
| System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Maintenance | Time Setting, Daylight Saving Time, SNMP, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
PRODUCT DETAILS
Features and applications
TL-R470T+ at a glance
TP-Link TL-R470T+ is an enterprise router in the Business enterprise routers range. Use the model code when matching your deployment or replacement requirement.
- Interface: 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m)
- Button: Reset Button
Configuration and installation
Match the WAN handoff, interface speeds and routing requirements to this model. Throughput varies with packet size, enabled services and software configuration.
Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.
