Storage Server
Build around your workload
Supermicro SSG-542B-E1CR60: 4U Rackmount storage server. Compare processor, memory and expansion requirements; request a configured-system quote.
Tell us the configuration, quantity and destination. Your quotation will show availability, condition, warranty and delivery terms.
Start an order requestSupermicro / PRODUCT DETAILS
See what is installed, then compare it with the platform limits. The maximum supported configuration may be different from what ships with this unit.
KEY SPECIFICATIONS / 01
Confirm drive carriers, backplane, controller and any required cables.
Supermicro / ORDER & INSTALLATION DETAILS
Identify the complete system SKU and board revision.
Check the supported chassis, backplane and riser combination.
Include required cables, cooling parts and drive carriers in the order.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Core count | P-cores: Up to 86C/144T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
|---|---|
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Memory voltage | 1.1V |
| Lan | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Form factor | 4U Rackmount |
| Height | 6.96" (177 mm) |
| Width | 17.6" (447 mm) |
| Depth | 32" (826 mm) |
| Manufacturer | Supermicro |
| Model | Storage SuperServer SSG-542B-E1CR60 |
| Manufacturer P/N | SSG-542B-E1CR60 |
| Model / P/N | Supermicro Storage SuperServer SSG-542B-E1CR60 |
| Category | Storage System |
| System model | SSG-542B-E1CR60 |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| NVMe | NVMe; RAID 0/1 support |
| Network Connectivity | No NIC option supported |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM Onboard TPM & TPM Header |
| BIOS Type | AMI 64MB SPI Flash |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Operating Systems | Oracle Linux 9.6, RHEL 10.0, Windows Server 2025 |
| Package | N/A |
| Weight | Gross Weight: 170 lbs (77.11 kg) Net Weight: 107 lbs (48.53 kg) |
| Palletized Packing (W x H x L) | 35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm) |
| Available Color | N/A |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays Configuration | Default: Total 60 bays 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 4.0 x4 NVMe* drive bays Option B: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Fans | Up to 6 Heavy Duty 8cm Fan(s) Up to 1 Counter Rotating 6cm Fan(s) |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
HOW THIS PRODUCT FITS YOUR SYSTEM
Choose how you plan to use this product.
Match the processor generation, socket population and required heatsink.
Check the installed modules, supported type and population rules.
Use this checklist to describe the change. The host system and full configuration determine which parts will fit.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full SSG-542B-E1CR60 order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Choose the host adapters around the workload and the storage protocol. A server NIC, Fibre Channel HBA and SAS HBA serve different connections.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
Supermicro / system composition
The complete platform reference defines the integration scope.
Record the exact board and revision.
Record the enclosure, backplane and cooling context.
Storage-server configuration
Service requirement File sharing, backup target, object storage or another intended service
Service requirement Boot media, data-drive type, bay format and protection approach
Service requirement Network connections, directory integration and operational ownership
Typical installation
4U single node
60 top-loading 3.5/2.5-inch SAS3/SATA3
Single-socket LGA-4710 Xeon 6
16 DIMM slots
Dual 2000 W redundant PSUs
Configuration requirements
The base SSG-542B-E1CR60 and fixed Gold configuration SSG-542B-E1CR60-01-G2 are different order identities. Do not describe the base system as the Gold SKU unless the full fixed configuration is quoted.
Planning calculator
This calculator is for project discovery. It does not create an orderable manufacturer BOM.
Raw capacity----
Estimated usable----
Remaining bays--before platform maximum
The base SSG-542B-E1CR60 and fixed Gold configuration SSG-542B-E1CR60-01-G2 are different order identities. Do not describe the base system as the Gold SKU unless the full fixed configuration is quoted.
Cross-brand shortlist
These systems share a high-density storage role. Similarity is not a compatibility or direct-replacement claim.
| Model | Drive format | Why compare |
|---|---|---|
| xFusion FusionServer 5298 V7 Rack Server | 60 LFF | 4U dual-socket storage-optimized rack server with up to 60 x 3.5-inch SAS/SATA drives and PCIe 5.0 expansion. |
| H3C UniServer R4500 G6 Server | 60 LFF | 4U dual-socket storage server with up to 60 LFF SAS/SATA drives and configuration-dependent SFF or NVMe options. |
| HPE Alletra Storage Server 4140 68LFF Configure-to-order System | 68 LFF CTO | 4U standard-depth CTO storage server supporting up to 68 LFF drives, or 60 LFF when a rear NVMe cage is selected. |
Ordering questions
No. It defines a platform ceiling under stated conditions. The written BOM must identify drive cages, backplanes, controllers, cables, power and selected media.
No. They are clearly labeled illustrations. The manufacturer image shows the product family; photos of the allocated unit and its serial number are available during the order process when possible.
As comparison candidates until workload, capacity, RAID/HBA, NVMe, network, operating-system HCL, support region and service requirements have been checked.

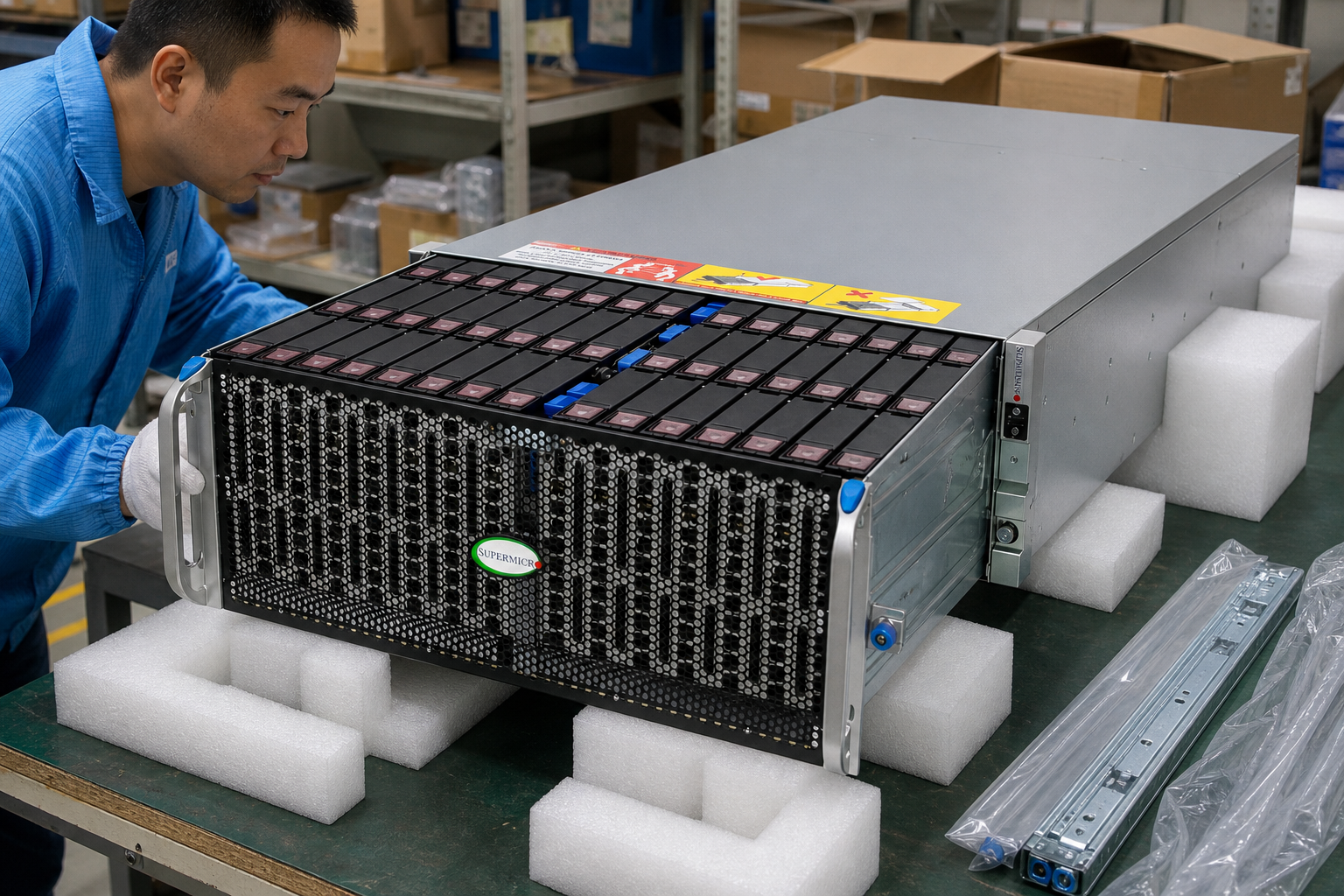

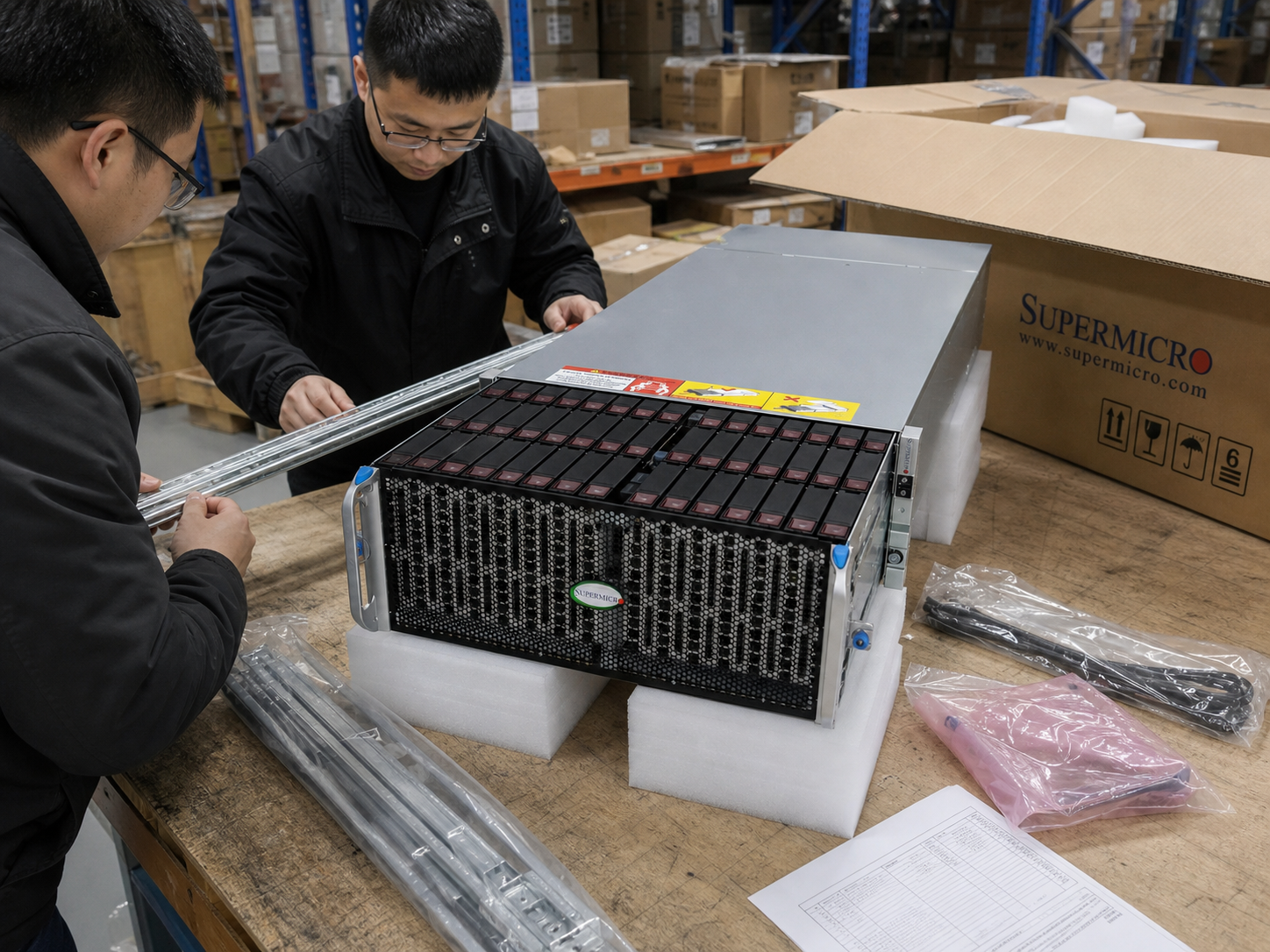

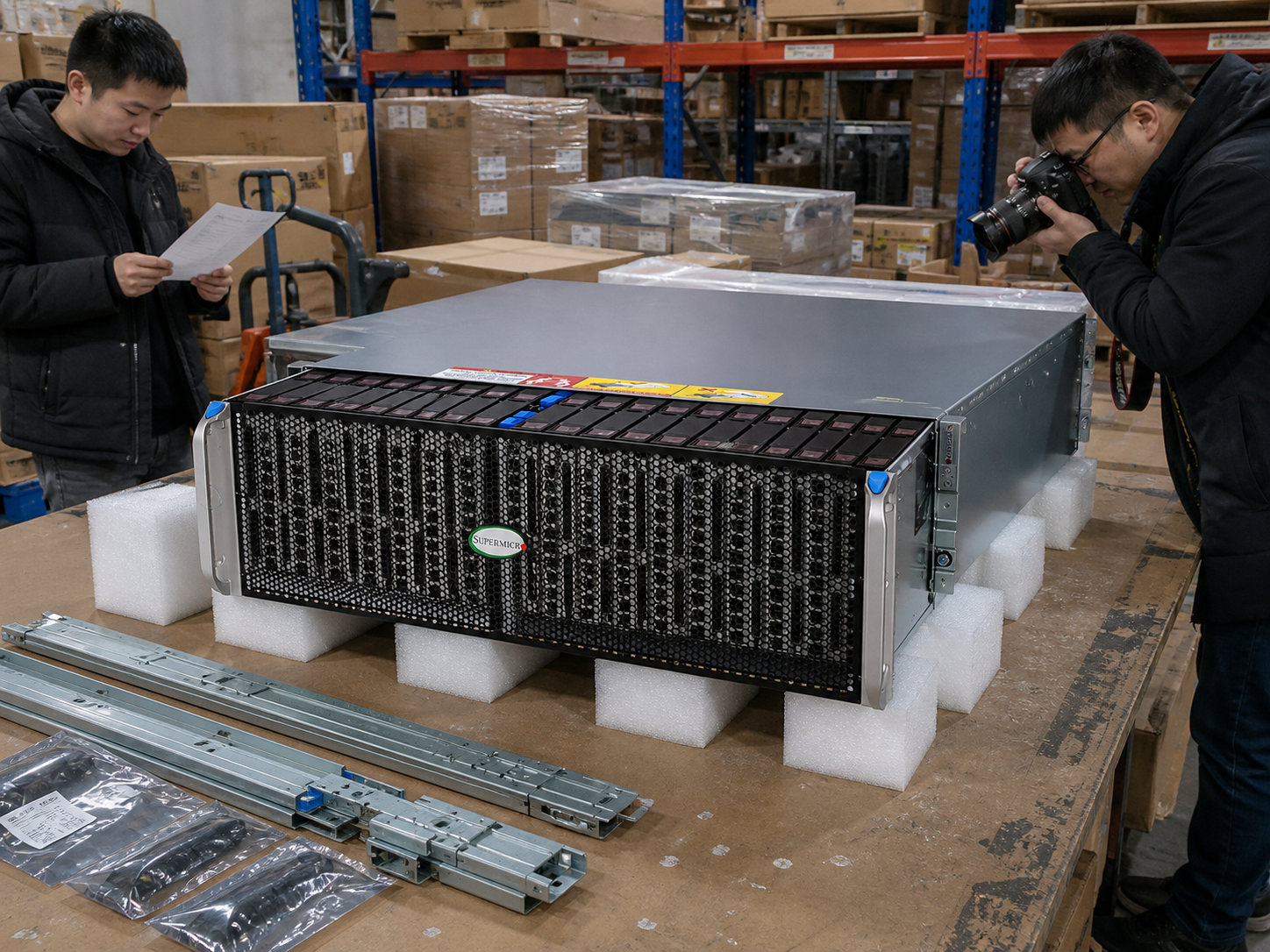

Illustrative scenes. Ask for photos of the equipment offered.
Manufacturer specifications
This model appears in the manufacturer system matrix. Confirm current orderability, condition and the supplied configuration with your quotation.
| Manufacturer | Supermicro |
|---|---|
| System model | SSG-542B-E1CR60 |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/144T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| NVMe | NVMe; RAID 0/1 support |
| Network Connectivity | No NIC option supported |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM Onboard TPM & TPM Header |
| BIOS Type | AMI 64MB SPI Flash |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Operating Systems | Oracle Linux 9.6, RHEL 10.0, Windows Server 2025 |
| Form Factor | 4U Rackmount |
| Model | CSE-947STS-R2K05P |
| Height | 6.96" (177 mm) |
| Width | 17.6" (447 mm) |
| Depth | 32" (826 mm) |
| Package | N/A |
| Weight | Gross Weight: 170 lbs (77.11 kg) Net Weight: 107 lbs (48.53 kg) |
| Palletized Packing (W x H x L) | 35.82" (805 mm) x 29.92" (755 mm) x 53.15" (1135 mm) |
| Available Color | N/A |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays Configuration | Default: Total 60 bays 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 4.0 x4 NVMe* drive bays Option B: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| Fans | Up to 6 Heavy Duty 8cm Fan(s) Up to 1 Counter Rotating 6cm Fan(s) |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Compare configurations
Supermicro SSG-542B-E1CR60: 4U Rackmount storage server. Compare processor, memory and expansion requirements; request a configured-system quote.
These specifications describe platform support and expansion options. They do not mean that maximum memory, processors, drives or expansion cards are installed. Review the configured bill of materials for each system.
| Selection criteria | This modelSSG-542B-E1CR60Supermicro SSG-542B-E1CR60Request configuration for SSG-542B-E1CR60 | Compare modelSSG-542B-E1CR90Supermicro SSG-542B-E1CR90Request configuration for SSG-542B-E1CR90 | Compare modelSSG-542B-DE1CR90Supermicro SSG-542B-DE1CR90Request configuration for SSG-542B-DE1CR90 |
|---|---|---|---|
| Processor support | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Memory support | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Network connectivity | No NIC option supported | No NIC option supported | No NIC option supported |
| Form factor | 4U Rackmount | 4U Rackmount | 4U Rackmount |
| Expansion slots | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots |
| Drive bays | Default: Total 60 bays 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 4.0 x4 NVMe* drive bays Option B: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) | Default: Total 90 bays 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays Option B: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) | Default: Total 90 bays 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays Option A: Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
Other catalog models are shown for selection planning. A shared family or form factor does not confirm component interchangeability. Check the complete P/N, system revision, firmware and requested configuration before ordering.
Model selection & order planning
Supermicro SSG-542B-E1CR60
Explore more products below. Please confirm compatibility before selecting a replacement.
Before you request a quote
Include the full model, manufacturer P/N, revision and quantity.
Tell us the host model, generation, installed configuration and required supporting hardware.
Specify condition, testing requirements, destination and requested delivery date.
