NETGEAR / Ethernet Switch

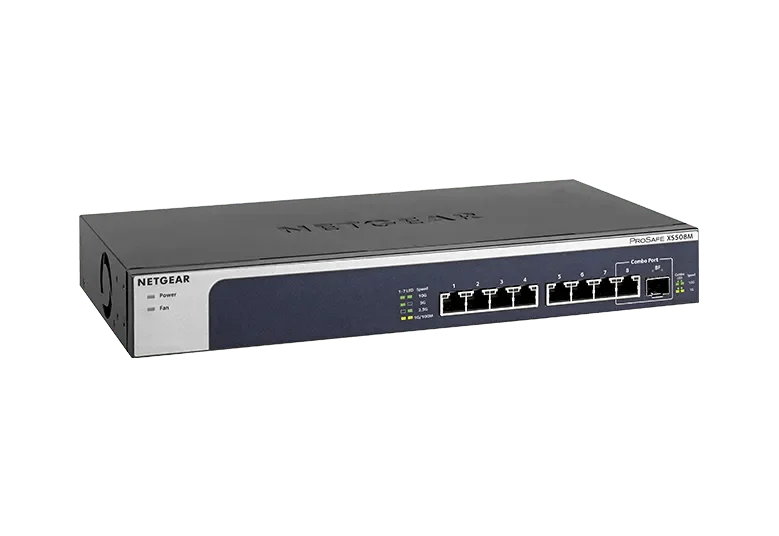

NETGEAR XS508M — XS508M-100NAS

Manufacturer P/N: XS508M-100NAS

NETGEAR XS508M-100NAS ethernet switch. 100M/1G/2.5G/5G/10G RJ-45 copper ports: 7; 10G SFP+ ports: 1 x 10G/1G SFP+ and Copper (combo); Jumbo frame support: Up to 9K packet size. Compare configuration and request a hardware quote.

Product model: XS508M
100M/1G/2.5G/5G/10G RJ-45 copper ports: 7
10G SFP+ ports: 1 x 10G/1G SFP+ and Copper (combo)
Jumbo frame support: Up to 9K packet size

Price on request

Pricing, availability, condition, included options and warranty are confirmed in your quotation.

Help choosing compatible hardwareWorldwide delivery

STORAGE & SAN

Storage systems
and SAN solutions

Compare storage arrays, servers and switches for Fibre Channel, iSCSI and file storage. Select a system below to see its connections and ordering considerations.

View storage connection examples

CONNECTIONS / 10GbE / backup traffic

Synology backup storage over 10GbE

Star Networking connection example · component-based design

SHOW CONNECTIONS

Select a product to see how it connects

Swipe to explore the full hardware map →

01 SERVERS

02 NETWORK

03 STORAGE

Logical data paths. Images show the equipment; cable endpoints are not physical port locations.

Backup protection · single network path

Select and protect supported workloads.

Write backups to a dedicated NAS repository.

Replicate a recovery copy away from the primary site.

A separate backup network connects supported server workloads to a Synology repository. Add an off-site copy to protect against a site-wide incident.

Confirm the full configuration and compatibility before ordering.

Synology · backup: equipment and connection requirements＋

A separate backup network connects supported server workloads to a Synology repository. Add an off-site copy to protect against a site-wide incident.

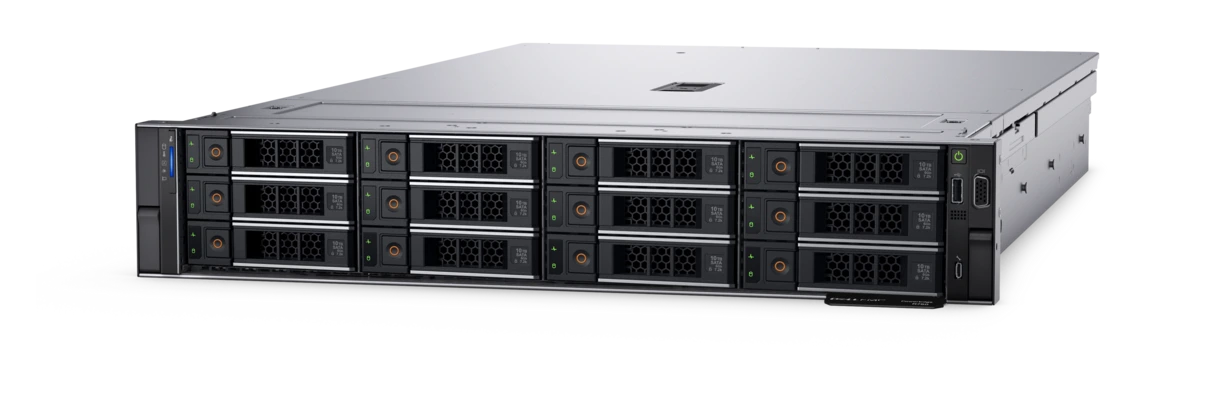

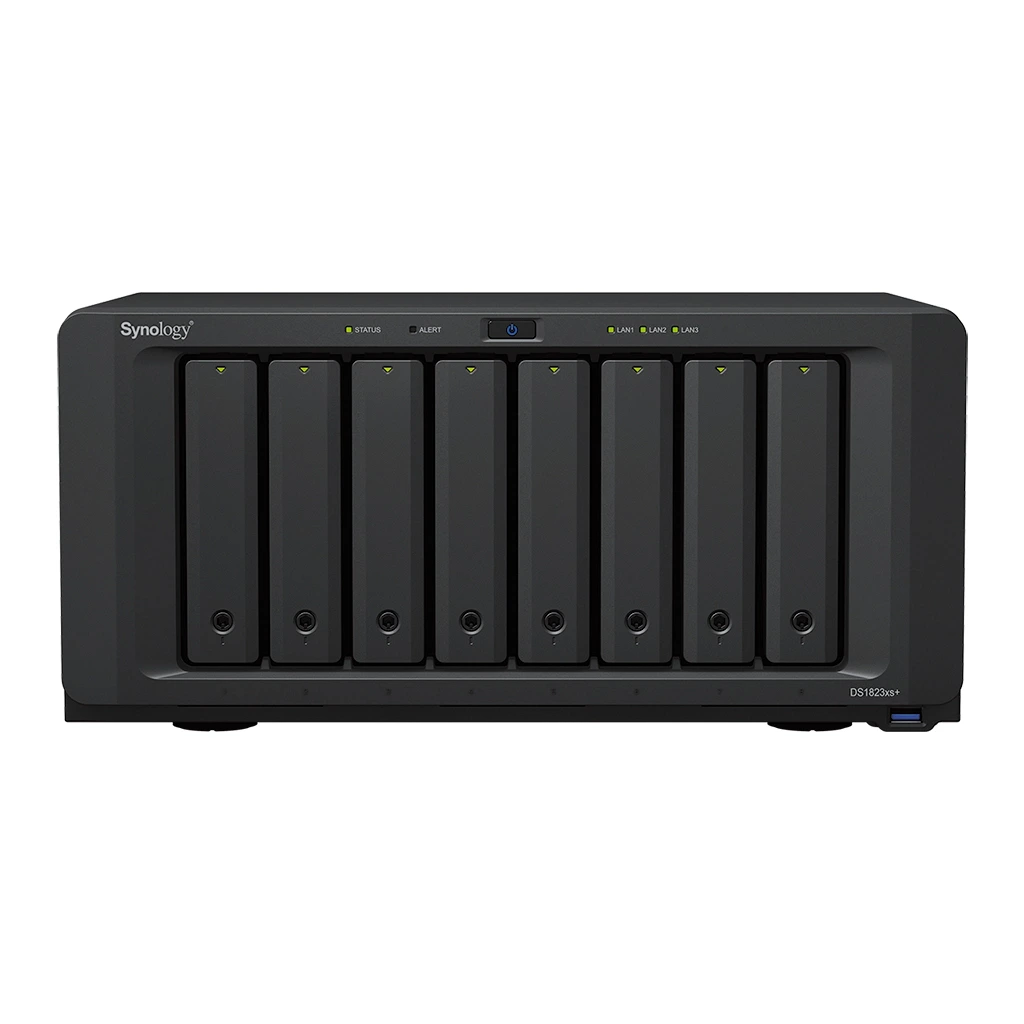

Dell PowerEdge R750 ↗Workstations & VMs ↗NETGEAR XS508M ↗Synology DS1823xs+ ↗Off-site backup target ↗

This is a proposed connection example, not a jointly certified hardware bundle. Confirm NIC, operating system and backup-package support.
One switch and one NAS uplink remain single points of failure. An off-site copy is a recovery layer, not automatic network failover.
Size retention, change rate and restore time before selecting drive capacity. Test restoration rather than relying only on successful backup jobs.

Star Networking connection example · component-based design

Technical overview

Technical specifications

Use the complete part number when reviewing options and system requirements.

XS508M-100NAS specifications
Manufacturer	NETGEAR
Manufacturer part number	XS508M-100NAS
Product family	Unmanaged switches
Product model	XS508M
100M/1G/2.5G/5G/10G RJ-45 copper ports	7
10G SFP+ ports	1 x 10G/1G SFP+ and Copper (combo)
Jumbo frame support	Up to 9K packet size
Dimensions (W x D x H)	328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
Weight	1.49 Kg (3.28lb)
Form Factor	Desktop/Rackmount
Packet buffer memory	128KB
Bandwidth	160Gbps
MAC Address database size	2 K
Number of priority queues	8
Fan(s)	1 Low-Noise Active Fan
IEEE 802.3az (Energy Efficient Ethernet)	Yes
Max power consumption (Watts)	39W
LEDs	Power, Fan, Speed, Link/Activity
Acoustic noise level @ 25° C (dBA)	28dB
Operating temperature	0° to 40° C
Electromagnetic compliance (A or B)	B

PRODUCT DETAILS

Features and applications

XS508M-100NAS at a glance

NETGEAR XS508M — XS508M-100NAS is an ethernet switch in the Unmanaged switches range. Use the model code when matching your deployment or replacement requirement.

100M/1G/2.5G/5G/10G RJ-45 copper ports: 7
10G SFP+ ports: 1 x 10G/1G SFP+ and Copper (combo)
Jumbo frame support: Up to 9K packet size

Configuration and installation

Plan the access-port count, uplink media and aggregate PoE load together. Verify the exact power-supply configuration, stacking components and optics before confirming the order.

Confirm hardware revision and included items in the quotation. A firmware-dependent feature or licensed capability must be checked against the actual configuration.

Related Unmanaged switches models

Ordering questions

What should I include in an enquiry?

Send XS508M-100NAS with quantity, destination, required condition and any installation constraints. List power, optics or mounting accessories separately when required.

Are accessories and support included?

Inclusions depend on the exact ordering configuration. We confirm the supplied hardware, accessories and applicable commercial terms in writing.
