AI Server
Build around your workload
Supermicro SYS-822GS-NB3RT: 8U Rackmount ai server. Compare processor, memory and expansion requirements; request a configured-system quote.
Tell us the configuration, quantity and destination. Your quotation will show availability, condition, warranty and delivery terms.
Supermicro / PRODUCT DETAILS
See what is installed, then compare it with the platform limits. The maximum supported configuration may be different from what ships with this unit.
KEY SPECIFICATIONS / 01
Confirm drive carriers, backplane, controller and any required cables.
Supermicro / ORDER & INSTALLATION DETAILS
Identify the complete system SKU and board revision.
Check the supported chassis, backplane and riser combination.
Include required cables, cooling parts and drive carriers in the order.
Technical overview
Use the full part number when comparing options or asking about system fit.
| Core count | Up to 86C/172T; Up to 336MB Cache per CPU |
|---|---|
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
| Memory voltage | 1.1V |
| Lan | 2 RJ45 10 GbE LAN ports (Intel® X710) 8 OSFP 800 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC™) |
| Form factor | 8U Rackmount |
| Height | 13.8" (356 mm) |
| Width | 17.6" (449 mm) |
| Depth | 37.4" (950 mm) |
| GPU subsystem | NVIDIA HGX B300, 8 GPUs |
| GPU memory | 2,304 GB aggregate (8 × 288 GB) |
| Cooling | Air cooling |
| Power reference | 6 × 6.6 kW PSUs; 3+3 redundancy (not system consumption) |
| Processor platform | Dual Intel Xeon 6700-series processors with P-cores |
| System memory | 32 DDR5 DIMM slots; capacity and speed depend on population |
| Local storage | 8 hot-swap E1.S NVMe bays; 2 M.2 boot drives |
| Network fabric | 8 × ConnectX-8 SuperNICs, up to 800 Gb/s |
| Brand | Supermicro |
| Model | SYS-822GS-NB3RT |
| Catalog line | X14 Universal GPU System |
| Manufacturer | Supermicro |
| Manufacturer P/N | SYS-822GS-NB3RT |
| Model / P/N | Supermicro SYS-822GS-NB3RT |
| Category | AI Server |
| Product family | Supermicro SuperServer |
| Product series | Intel SuperServers |
| System model | SYS-822GS-NB3RT |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| USB | 1 USB 3.0 Type-A port (Front) 1 USB 2.0 Type-A port (Front) |
| Video | 1 VGA port 1 mini-DP port |
| BIOS Type | AMI 64MB UEFI |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Operating Systems | ESXi 8.0U3, ESXi 9.0, ESXi 9.1, Oracle Linux 9.6, RHEL 9.6, RHEL 10.0, RHEL AI 3.3 |
| Package | 26.38" (H) x 28.74" (W) x 50.39" (D) |
| Weight | Gross Weight: 302 lbs (137 kg) Net Weight: 263 lbs (119 kg) |
| Available Color | Silver |
| Buttons | Power On/Off UID |
| LED | HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID) |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
| Fans | Up to 12 heavy duty fans with optimal fan speed control |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
HOW THIS PRODUCT FITS YOUR SYSTEM
Choose how you plan to use this product.
Match the processor generation, socket population and required heatsink.
Check the installed modules, supported type and population rules.
Use this checklist to describe the change. The host system and full configuration determine which parts will fit.
YOUR QUOTE REQUEST
Add the quantity, options and installation details you want us to quote.
Confirm the exact manufacturer part number, host compatibility and included components. Optional software is quoted separately only when requested.
SUPPORT & REPLACEMENT
Check support dates, replacement options and whether continued use still makes sense.
We do not have confirmed sales and support dates for this part number.
Send us the full SYS-822GS-NB3RT order code, software release and support details before planning long-term use.
Ask us to check the current sales and support statusProducts with similar names or connectors may still be incompatible. Compare the full specifications, installed system and software requirements.
Compare related products These products may be related, but we have not confirmed them as replacements.USING HARDWARE RESPONSIBLY
Consider repairability, remaining support and actual operating demand. Extending service life is useful only when the equipment still meets your security and reliability requirements.
Use measured average input power for the same workload. PSU ratings and processor TDP are different from total system power.
Energy difference = (current W − proposed W) × hours × units ÷ 1,000. Excludes cooling, embodied emissions and purchase costs.CONNECTION DETAILS
Choose the host adapters around the workload and the storage protocol. A server NIC, Fibre Channel HBA and SAS HBA serve different connections.
Browse the categories above for related equipment, then send us the full configuration so we can check the fit.
PRODUCT DETAILS
EXACT PLATFORM / SOURCE-REVIEWED SUMMARY
Aggregate GPU memory is the sum across installed GPUs, not one independently addressable memory pool. Actual configuration and supported options must be confirmed.

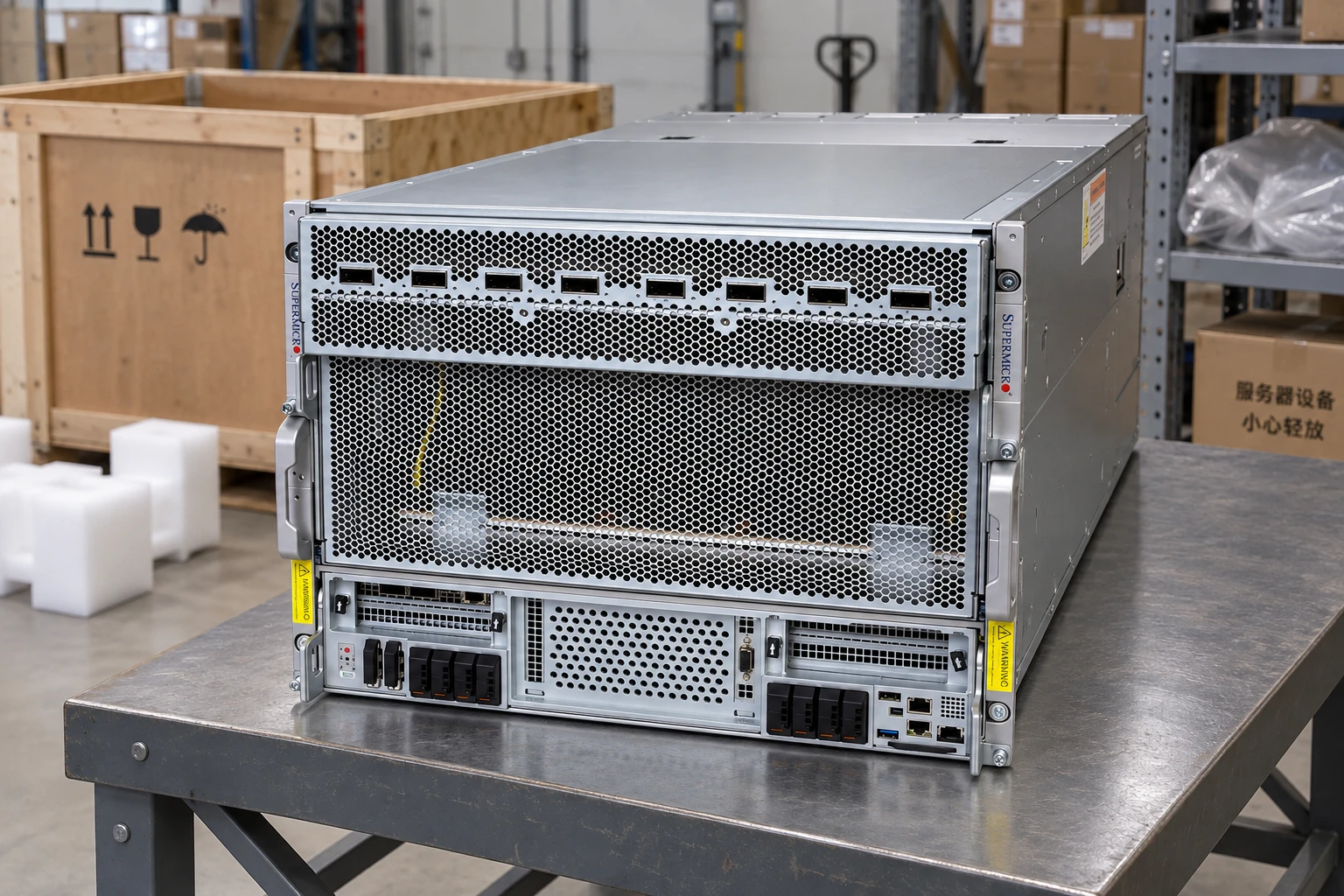

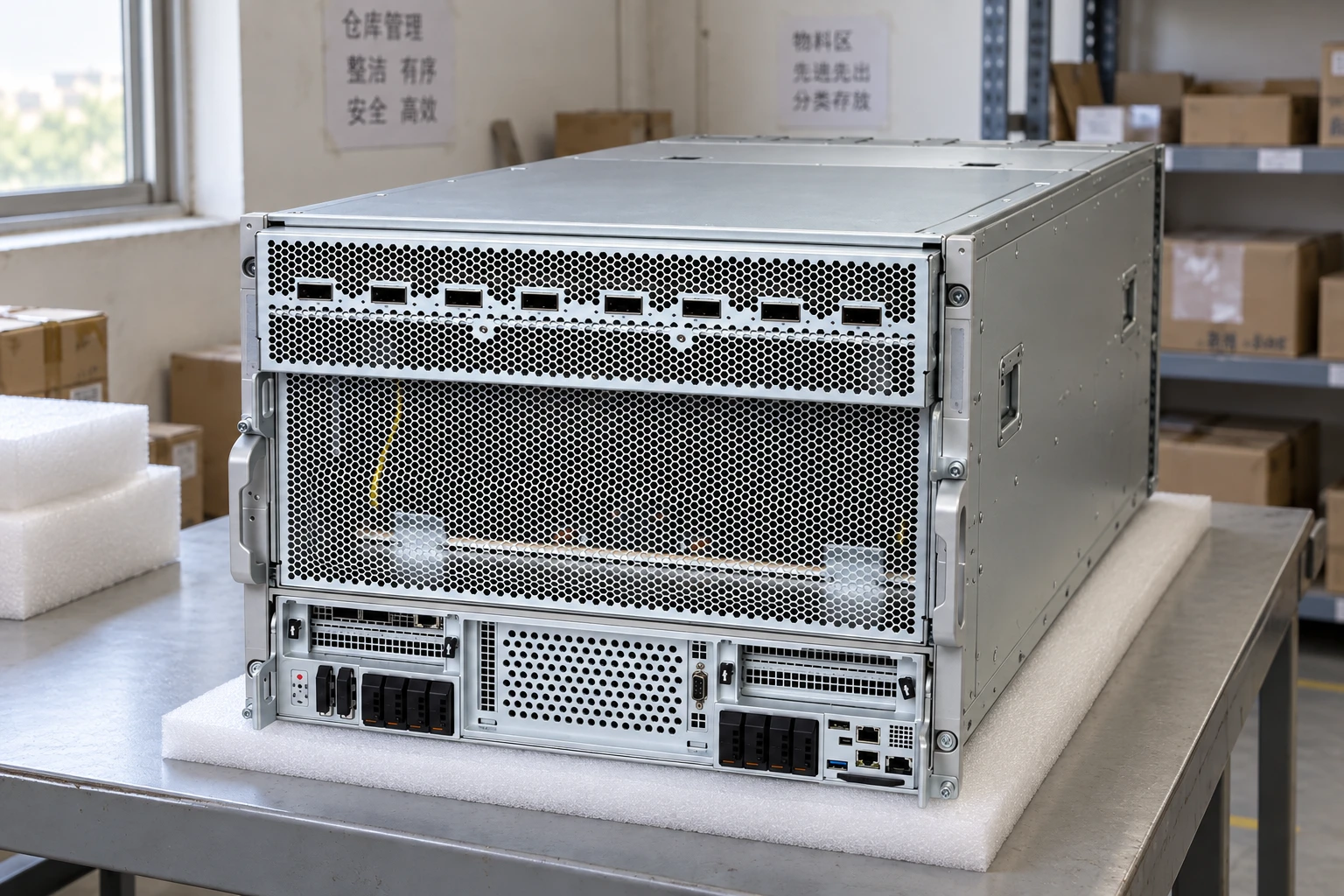

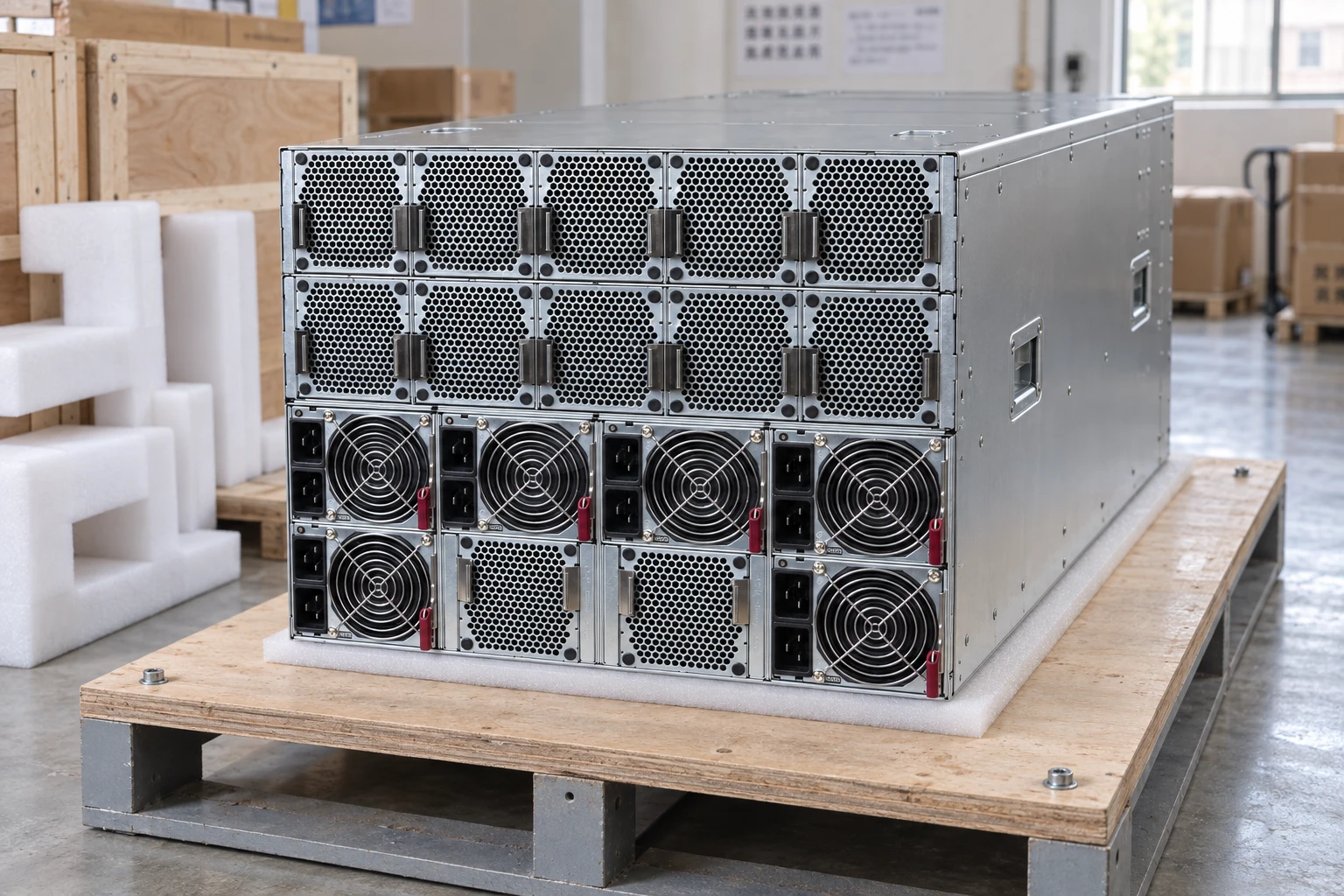

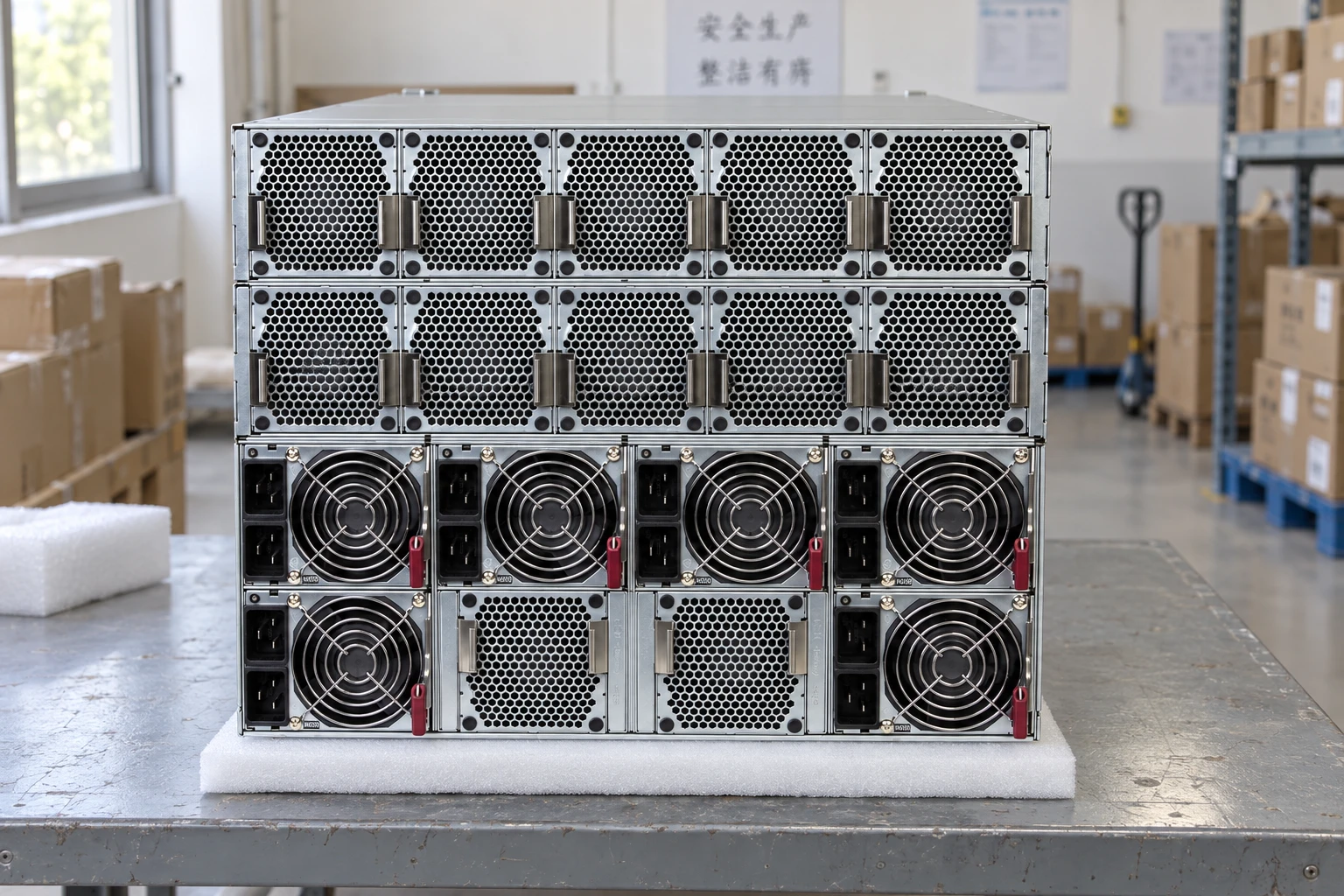

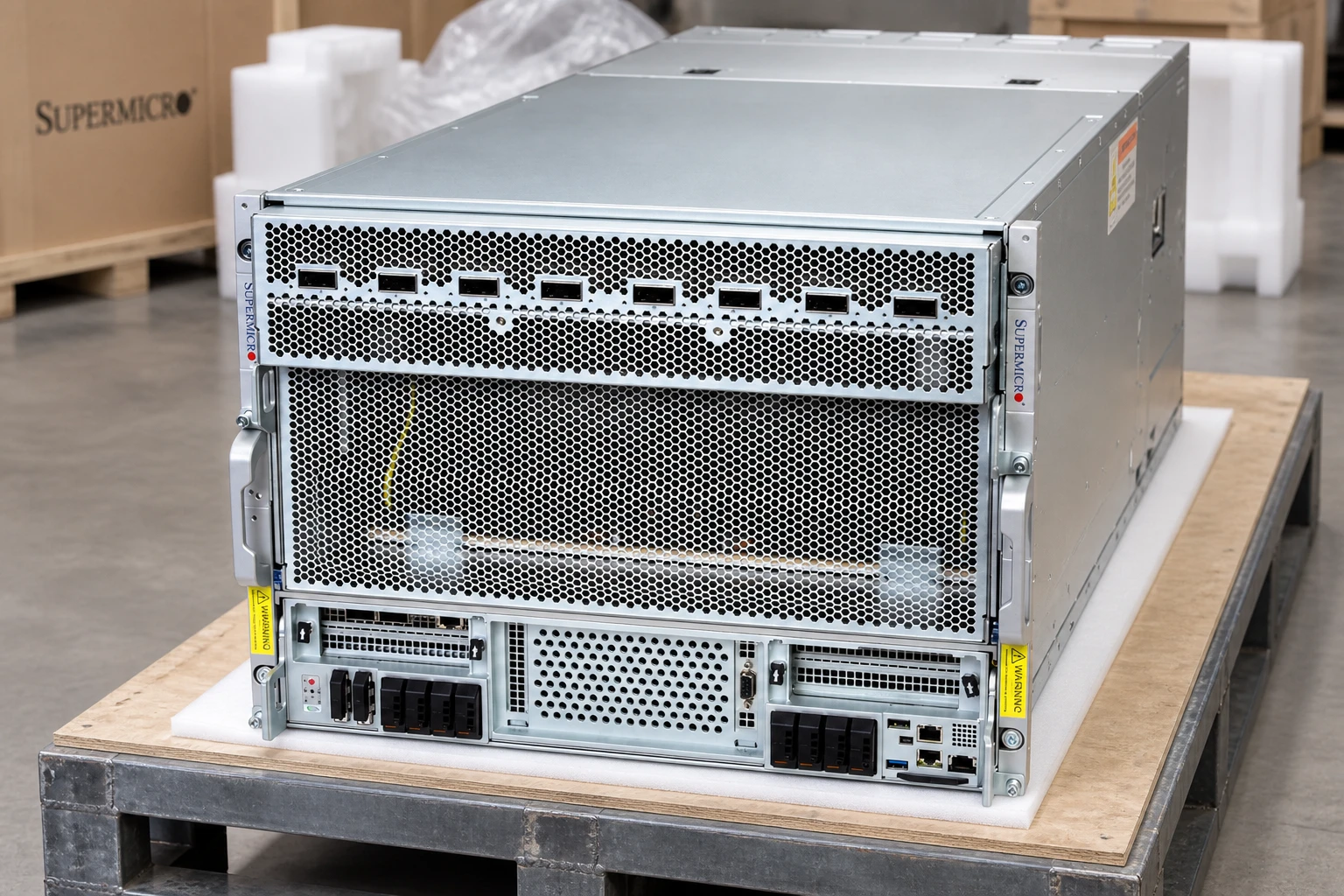

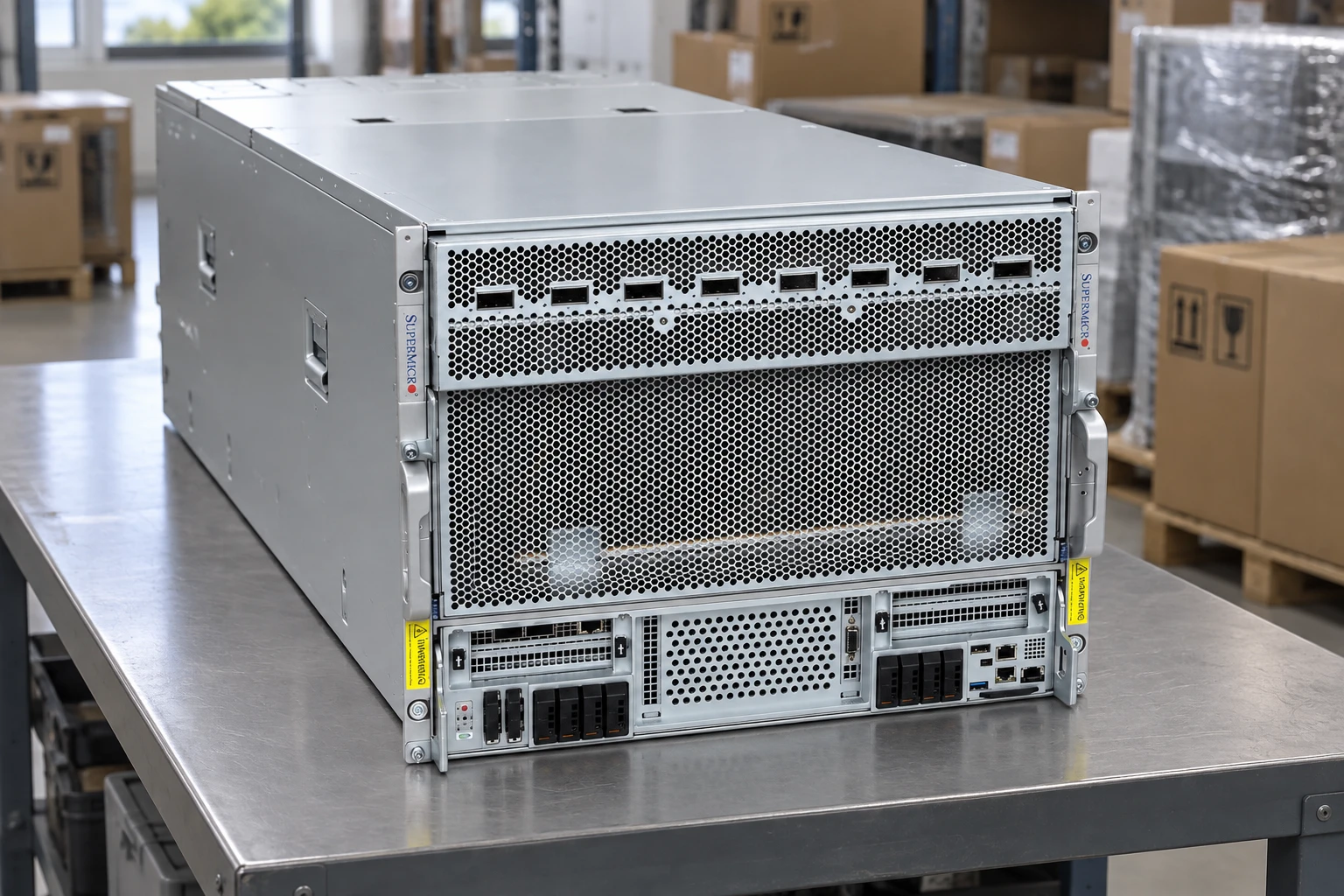

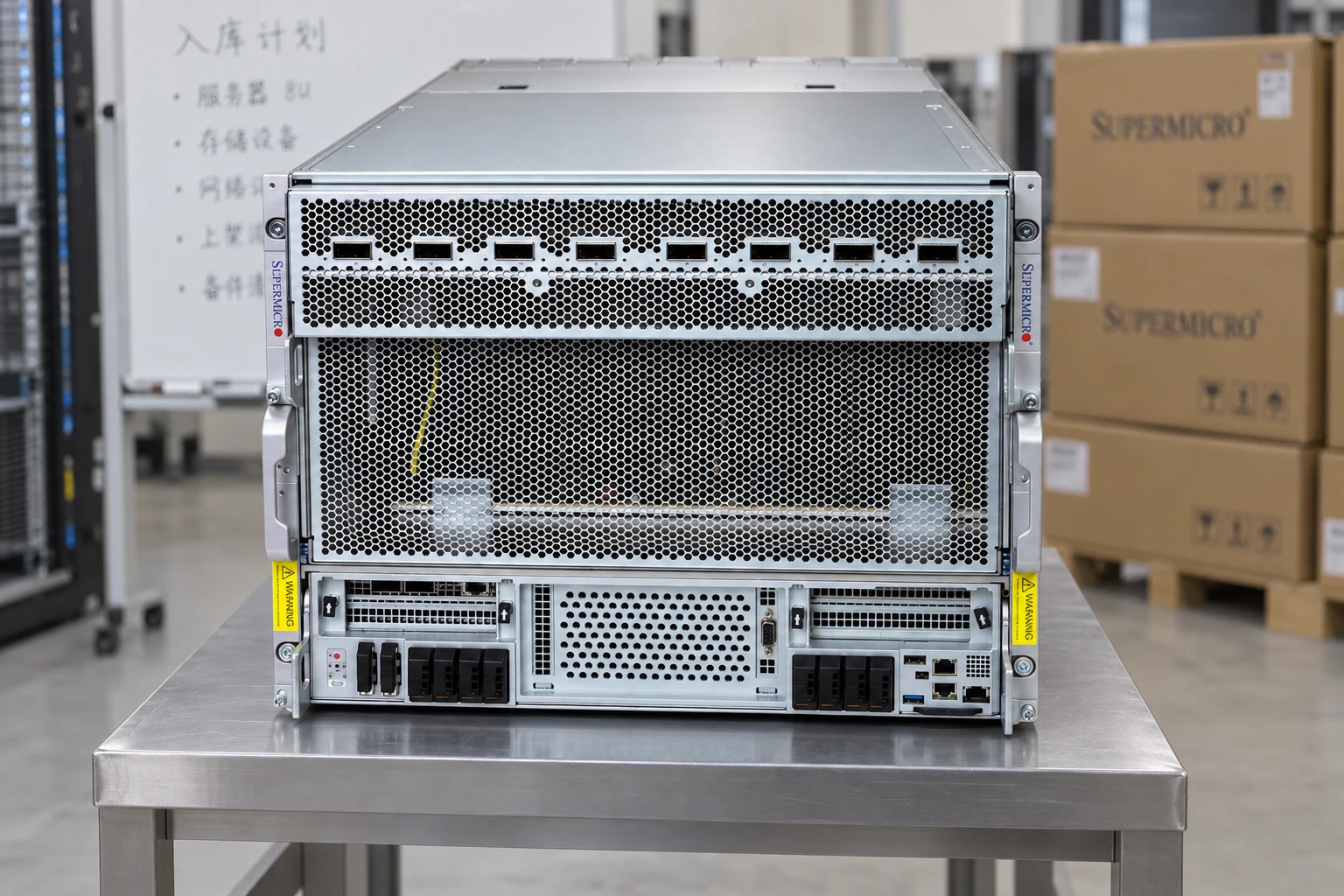

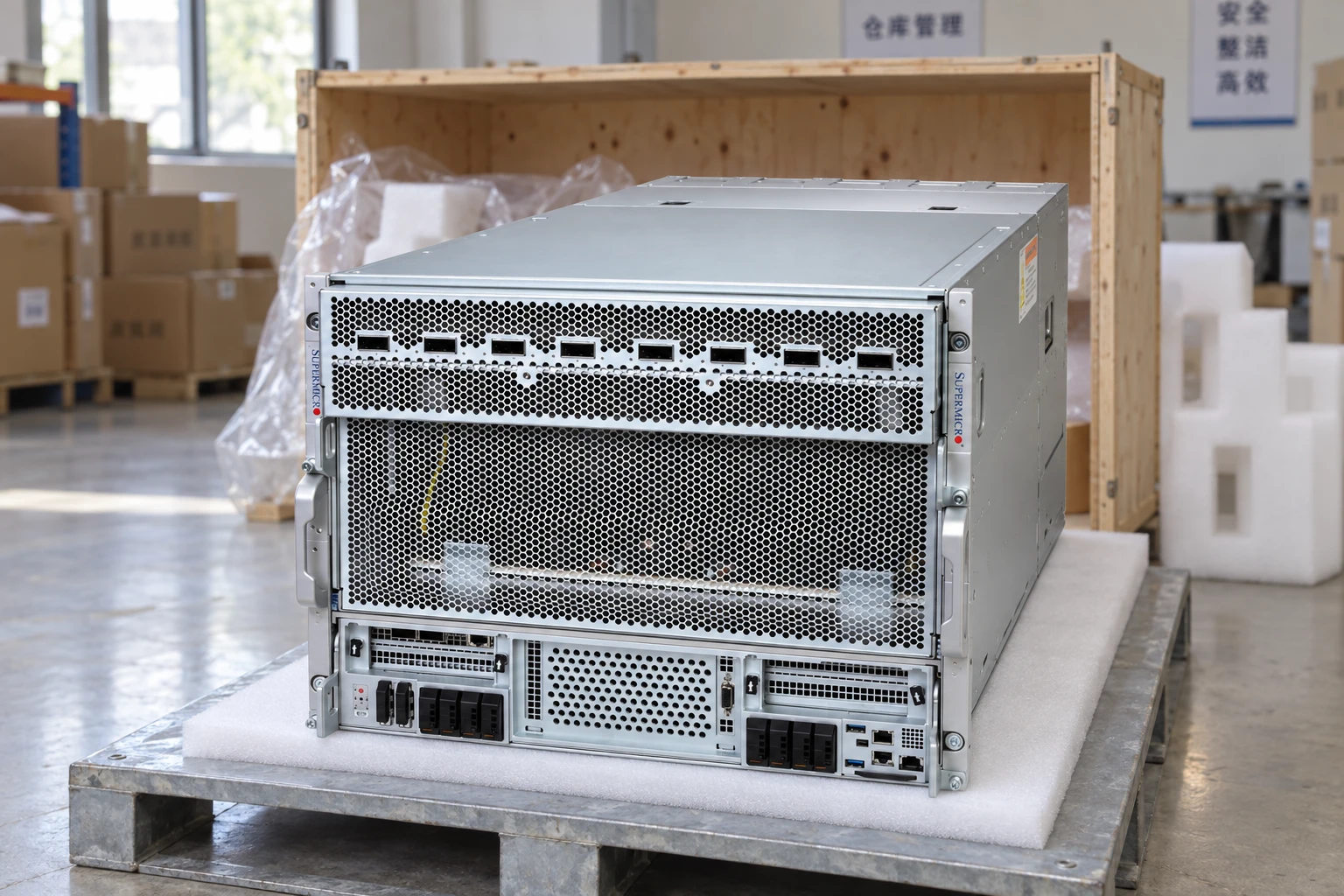

Plan DGX system quantities ↗WAREHOUSE SCENE STUDIES
Explore model-specific handling and packing scenarios with fully supported chassis, low industrial platforms and protective packaging. These are illustrative product-category images, not photographs of available stock. Request current unit photographs with your quotation.
See the product details and images below.
Supermicro / system composition
The complete platform reference defines the integration scope.
Record the exact board and revision.
Record the enclosure, backplane and cooling context.
Server configuration
Server Configuration Options
Each option family is listed and priced separately. CPU, memory, SSD/HDD, RAID/HBA, NIC, DPU, GPU and support choices remain visible in the quotation.
Supermicro validated processor choices are checked by supported generation, socket count, TDP and workload profile.
Single-module price is treated by generation, capacity, rank, speed and balanced channel population.
SSD RFQ follows capacity, form factor, interface, carrier, firmware and endurance class.
HDD RFQ follows capacity, SAS/SATA interface, spindle class, carrier and chassis bay compatibility.
Supermicro validated controller or HBA options are matched to backplane, cable, boot and data-protection mode.
Adapter price depends on port speed, PCIe lane plan, optics need, firmware and support coverage.
Rack integration plan
Star Networking reviews upstream switching, storage path, OOB management, power input, rails and service details together so the delivered node can be installed without reworking the BOM.
25/100/400G uplinks, DAC/AOC, optics and OOB management are planned before shipment.
Supermicro SYS-822GS-NB3RT is staged with CPU, DIMM, storage, controller, NIC, PSU and firmware profile.
Boot media, hot data tier, capacity tier and backup path are separated in the BOM.
Service terms, serial numbers, labels, packing details and delivery milestones are recorded with the order.
Deployment / workload
Choose platform options and confirm the operating environment before finalizing the design.
Balance core density, memory capacity, boot resilience, east-west traffic and support policy.
Align memory, storage latency, controller mode and network throughput with the application profile.
Plan resilient boot, management access, power redundancy and a repeatable firmware baseline.
Validate host CPUs, memory, accelerator topology, fabric, power, cooling and software as one system design.
Compatibility and BOM checks
Manufacturer specifications
This model appears in the manufacturer system matrix. Confirm current orderability, condition and the supplied configuration with your quotation.
| Manufacturer | Supermicro |
|---|---|
| System model | SYS-822GS-NB3RT |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores |
| Core Count | Up to 86C/172T; Up to 336MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| LAN | 2 RJ45 10 GbE LAN ports (Intel® X710) 8 OSFP 800 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC™) |
| USB | 1 USB 3.0 Type-A port (Front) 1 USB 2.0 Type-A port (Front) |
| Video | 1 VGA port 1 mini-DP port |
| BIOS Type | AMI 64MB UEFI |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU | 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Operating Systems | ESXi 8.0U3, ESXi 9.0, ESXi 9.1, Oracle Linux 9.6, RHEL 9.6, RHEL 10.0, RHEL AI 3.3 |
| Form Factor | 8U Rackmount |
| Model | CSE-GP807TS-R000NP |
| Height | 13.8" (356 mm) |
| Width | 17.6" (449 mm) |
| Depth | 37.4" (950 mm) |
| Package | 26.38" (H) x 28.74" (W) x 50.39" (D) |
| Weight | Gross Weight: 302 lbs (137 kg) Net Weight: 263 lbs (119 kg) |
| Available Color | Silver |
| Buttons | Power On/Off UID |
| LED | HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID) |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
| Fans | Up to 12 heavy duty fans with optimal fan speed control |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |

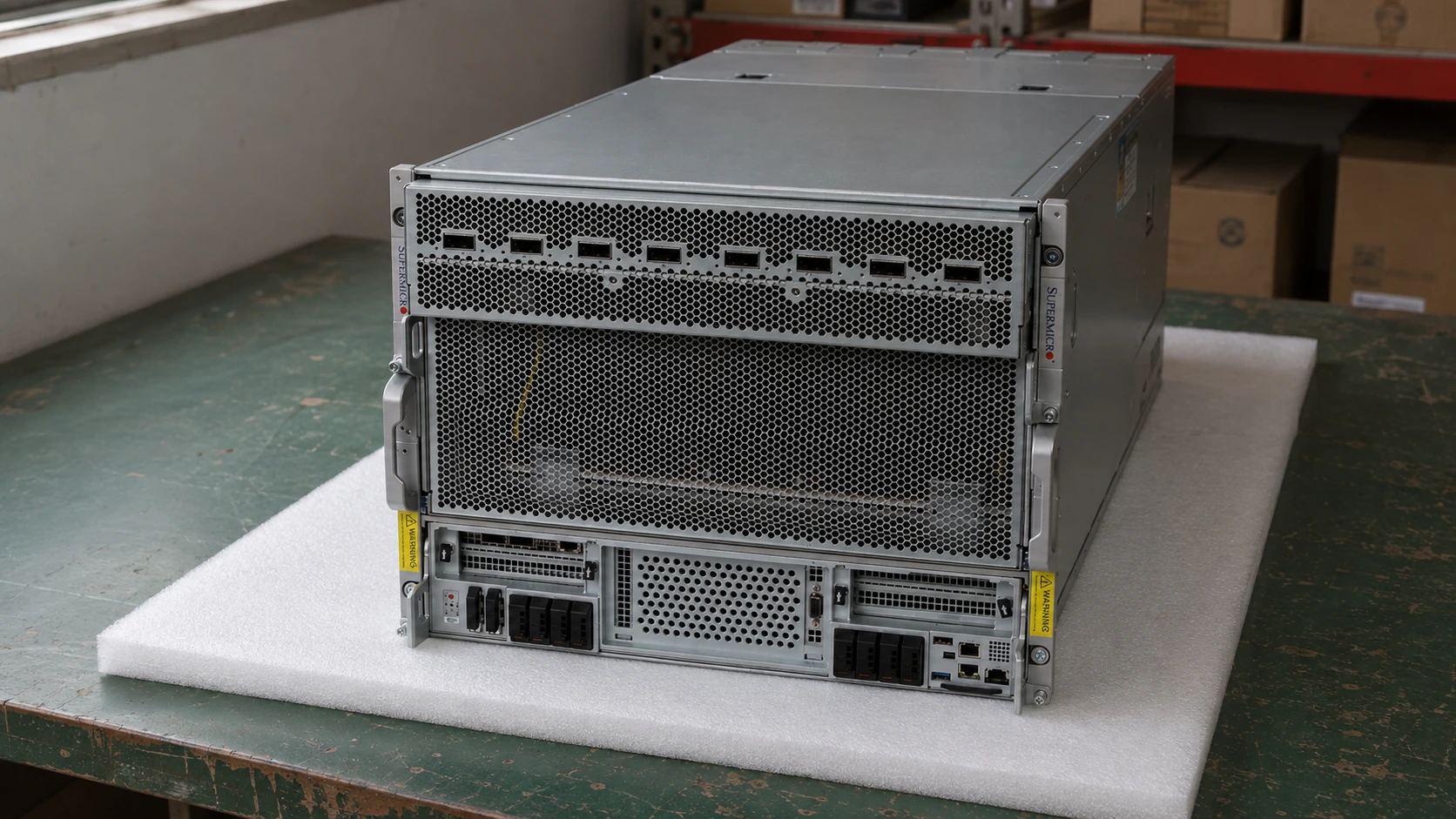

Illustrative scenes. Ask for photos of the equipment offered.

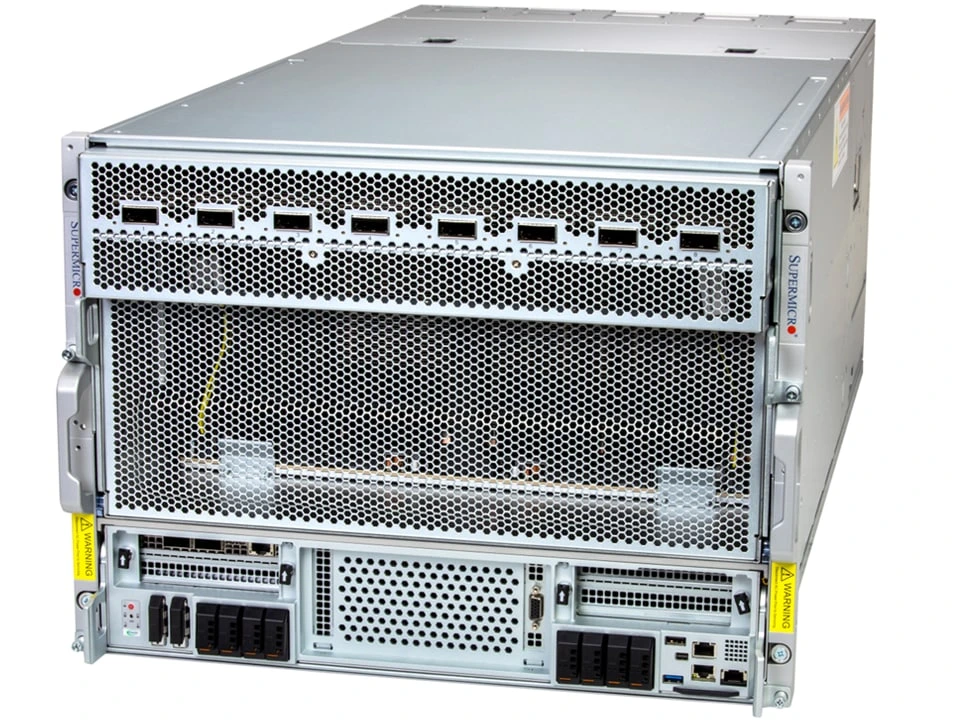

MANUFACTURER TECHNICAL VISUALS
Review the chassis, connectors and service views alongside the exact manufacturer configuration. Drawings and manufacturer visuals are not photographs of offered stock.
Compare configurations
Supermicro SYS-822GS-NB3RT: 8U Rackmount ai server. Compare processor, memory and expansion requirements; request a configured-system quote.
These specifications describe platform support and expansion options. They do not mean that maximum memory, processors, drives or expansion cards are installed. Review the configured bill of materials for each system.
| Selection criteria | This modelSYS-822GS-NB3RTSupermicro SYS-822GS-NB3RTRequest configuration for SYS-822GS-NB3RT | Compare modelAS-8126GS-NB3RTSupermicro AS-8126GS-NB3RTRequest configuration for AS-8126GS-NB3RT | Compare modelSYS-822GS-NBRTSupermicro SYS-822GS-NBRTRequest configuration for SYS-822GS-NBRT |
|---|---|---|---|
| Processor support | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores | Dual processor(s) AMD EPYC™ 9005 Series Processors | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores |
| Memory support | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Form factor | 8U Rackmount | 8U Rackmount | 8U Rackmount |
| Expansion slots | Default 2 PCIe 5.0 x16 FHHL slots | Default 2 PCIe 5.0 x16 FHHL slots Option A* 2 PCIe 5.0 x16 FHHL slots (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive bays | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| Network connectivity | Not specified in this comparison | 8 OSFP 800GbE 2 RJ45 10GbE | 2 RJ45 10GbE with Intel® X710 |
Other catalog models are shown for selection planning. A shared family or form factor does not confirm component interchangeability. Check the complete P/N, system revision, firmware and requested configuration before ordering.
Model selection & order planning
Supermicro SYS-822GS-NB3RT
Explore more products below. Please confirm compatibility before selecting a replacement.
Before you request a quote
Include the full model, manufacturer P/N, revision and quantity.
Tell us the host model, generation, installed configuration and required supporting hardware.
Specify condition, testing requirements, destination and requested delivery date.
